RT-GY Series — Rotary Joint for Hydraulic Applications
Multi-passage hydraulic power transmission up to 100 MPa
Overview
The RT-GY series hydraulic rotary joint is primarily used on rotating equipment for transmitting hydraulic oil or compressed air. Multiple passages can be manufactured with each operating independently. Widely used as center swivel joints for construction machinery, sheet metal coilers/uncoilers, and hydraulic chucks for CNC machine tools.
Key Features
- Multi-passage independent operation
- Withstands up to 100 MPa pressure
- Suitable for construction machinery and CNC
- Supplies hydraulic power to rotating actuators
Typical Applications
Construction machinery center swivel joints
Sheet metal coilers and uncoilers
CNC hydraulic chucks
Operating Conditions
| Media | Coolant, hot water, cold water, oil, compressed air |
|---|---|
| Max Pressure | 100 MPa |
| Max Temperature | 80°C |
| Speed Range | Up to 200 rpm |

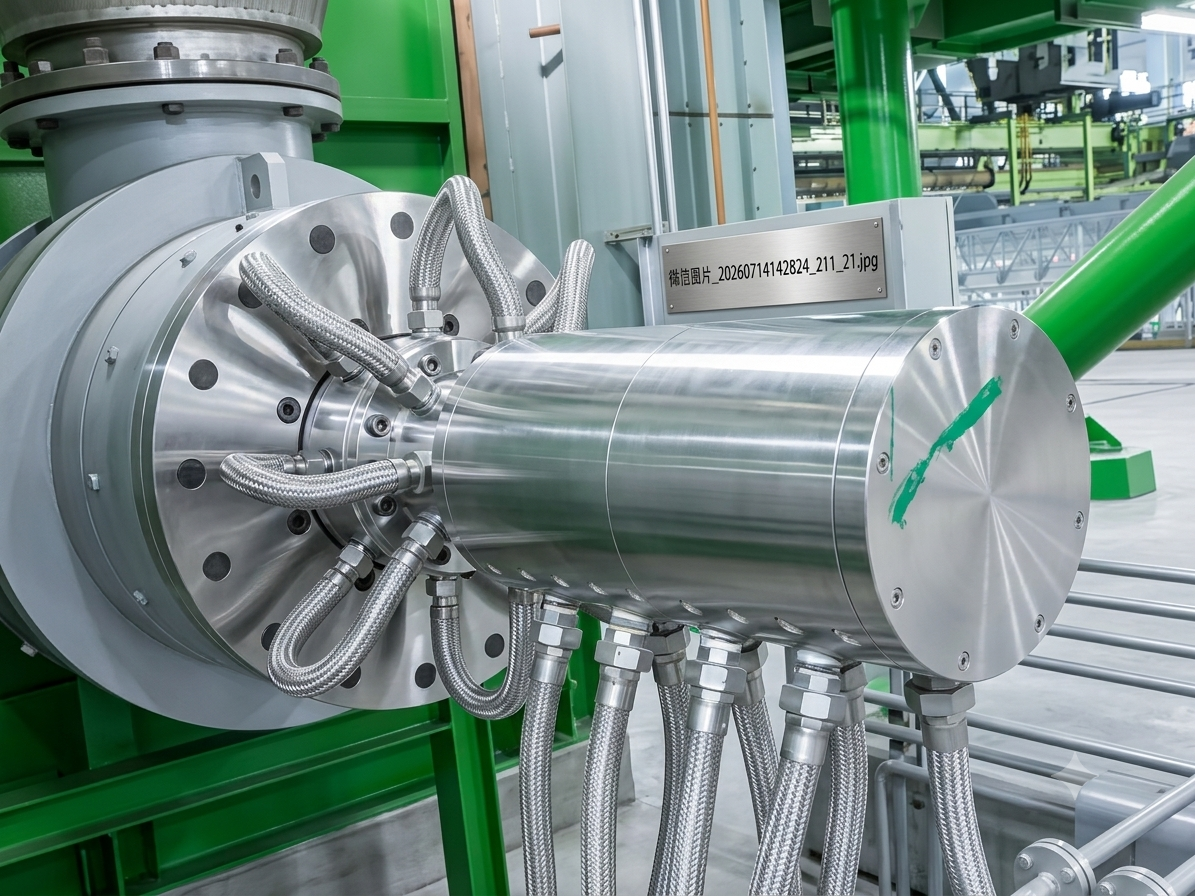

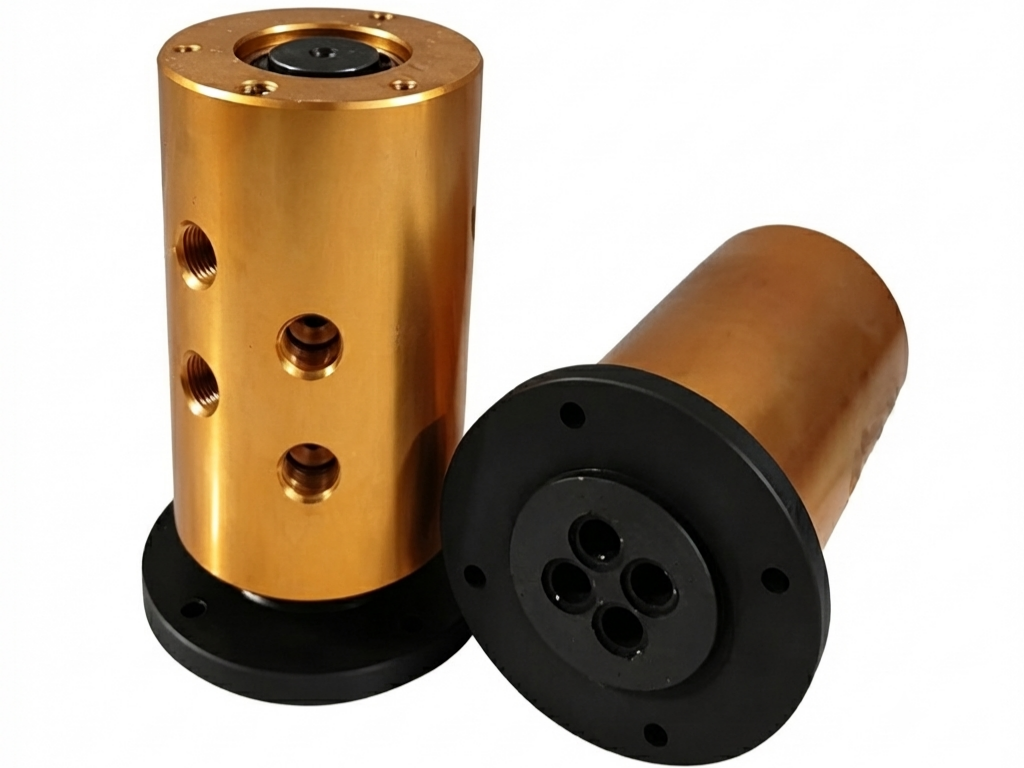

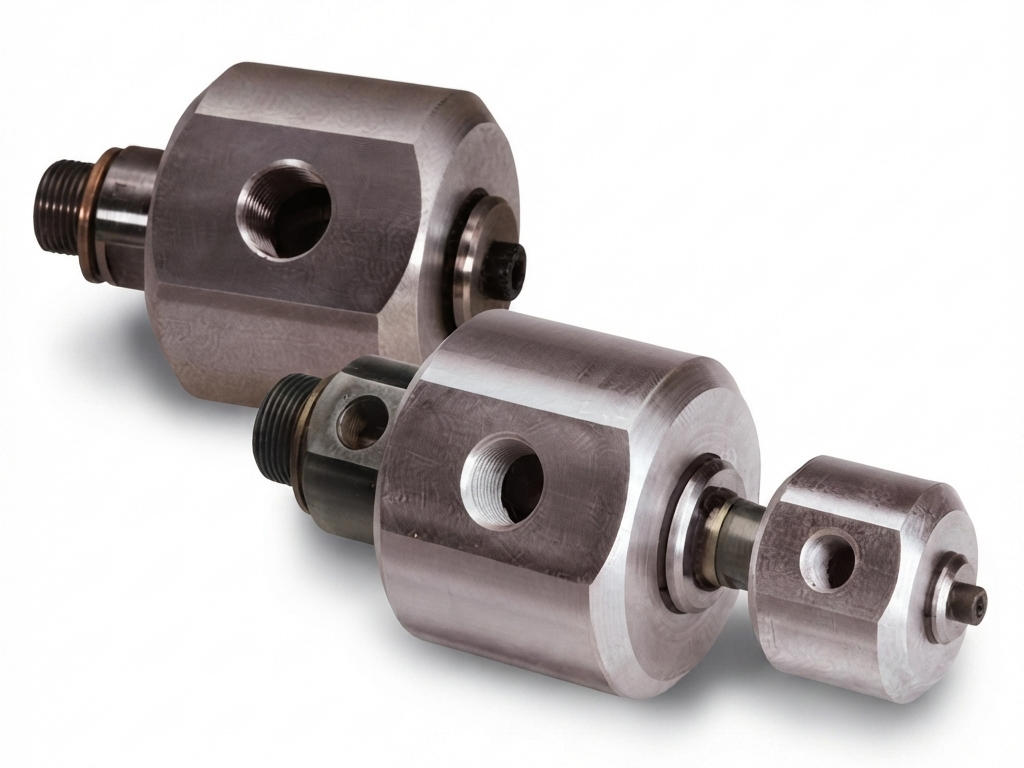

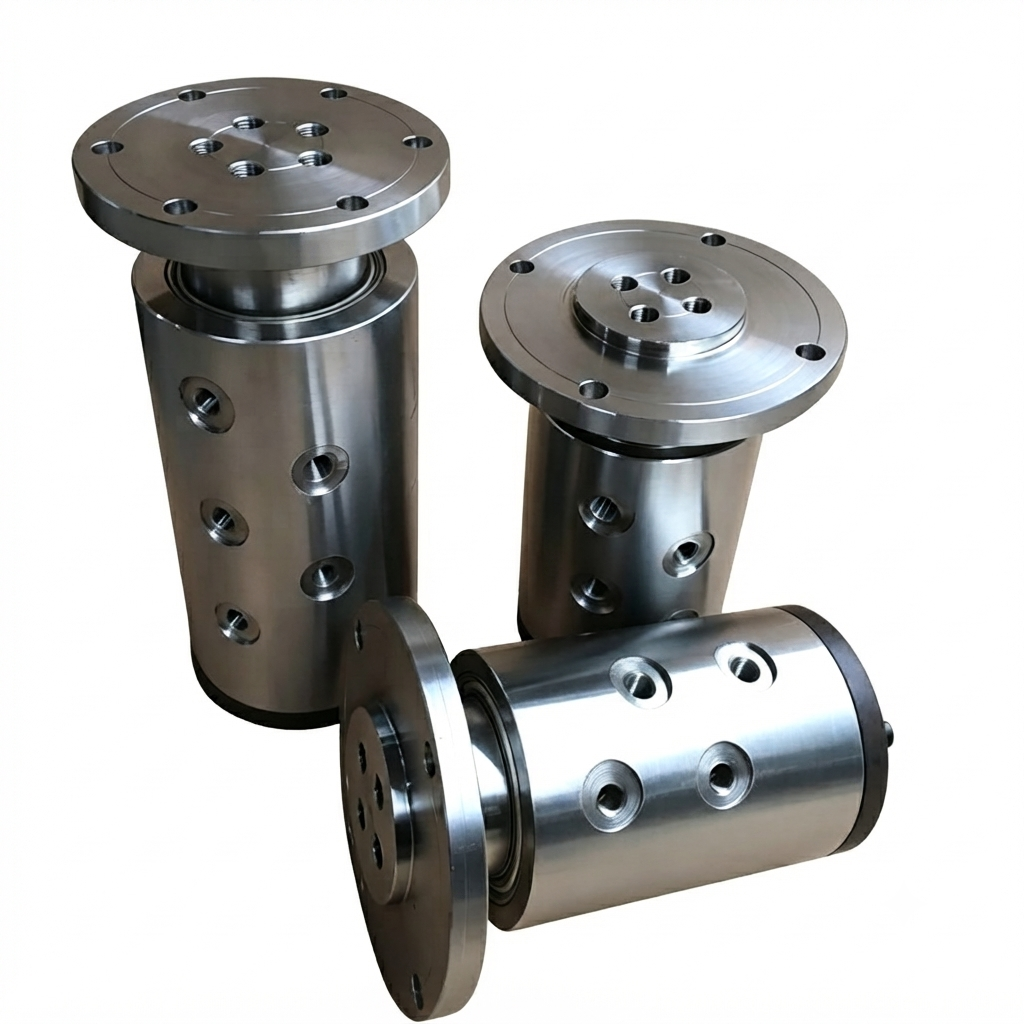

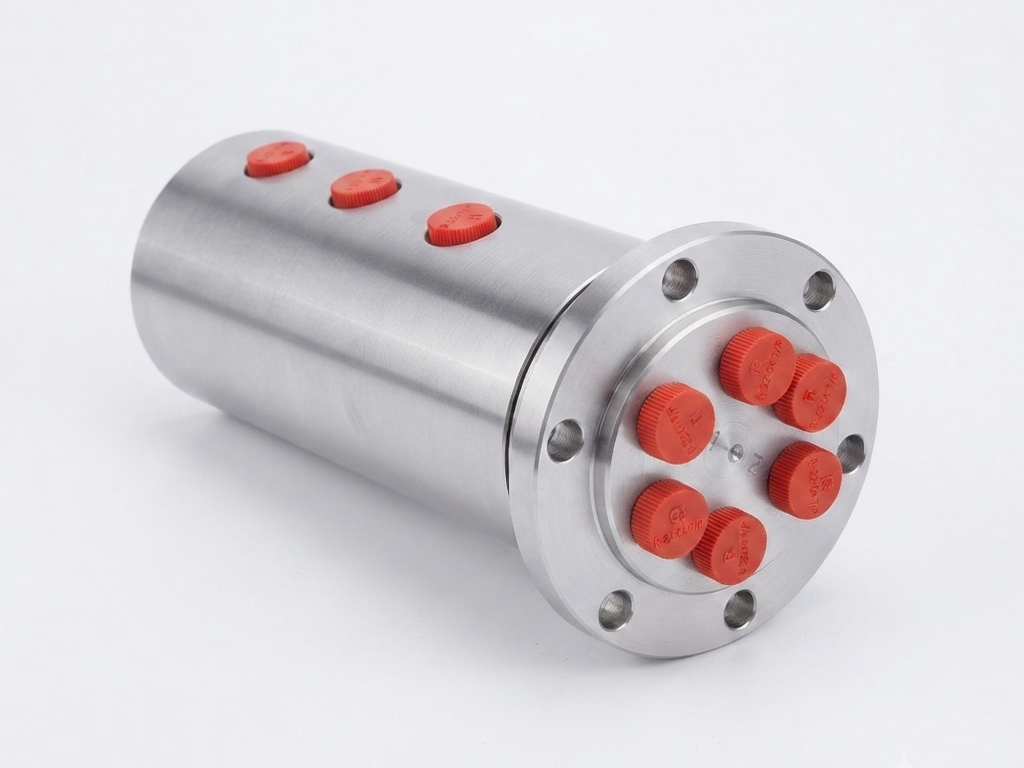

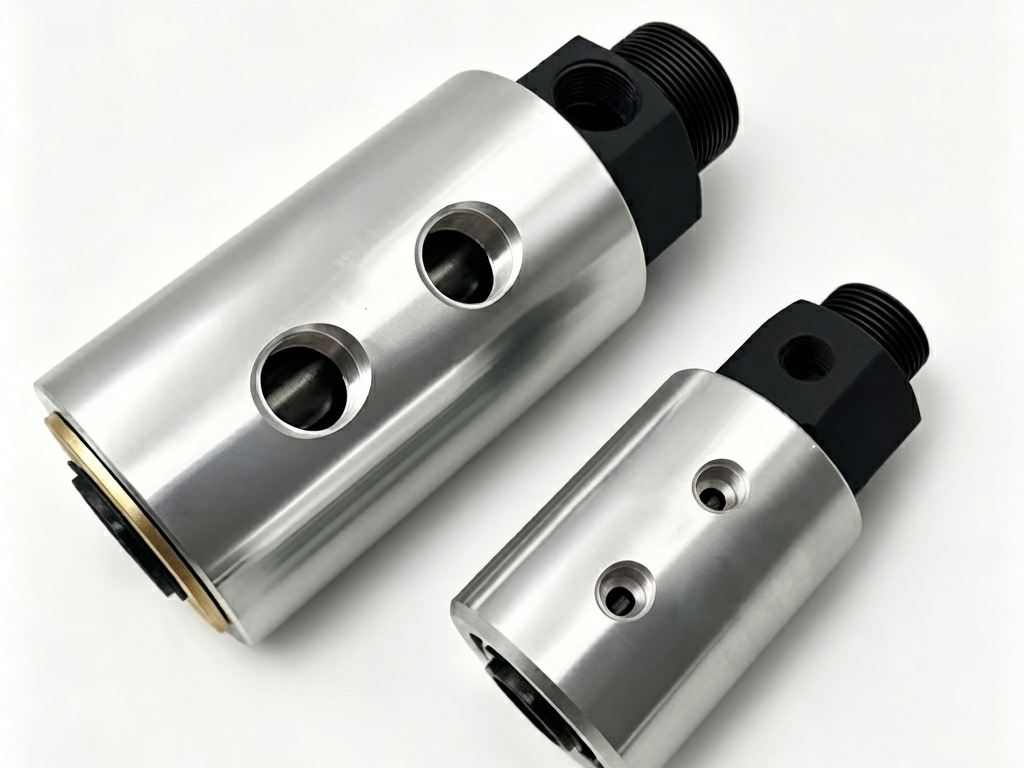

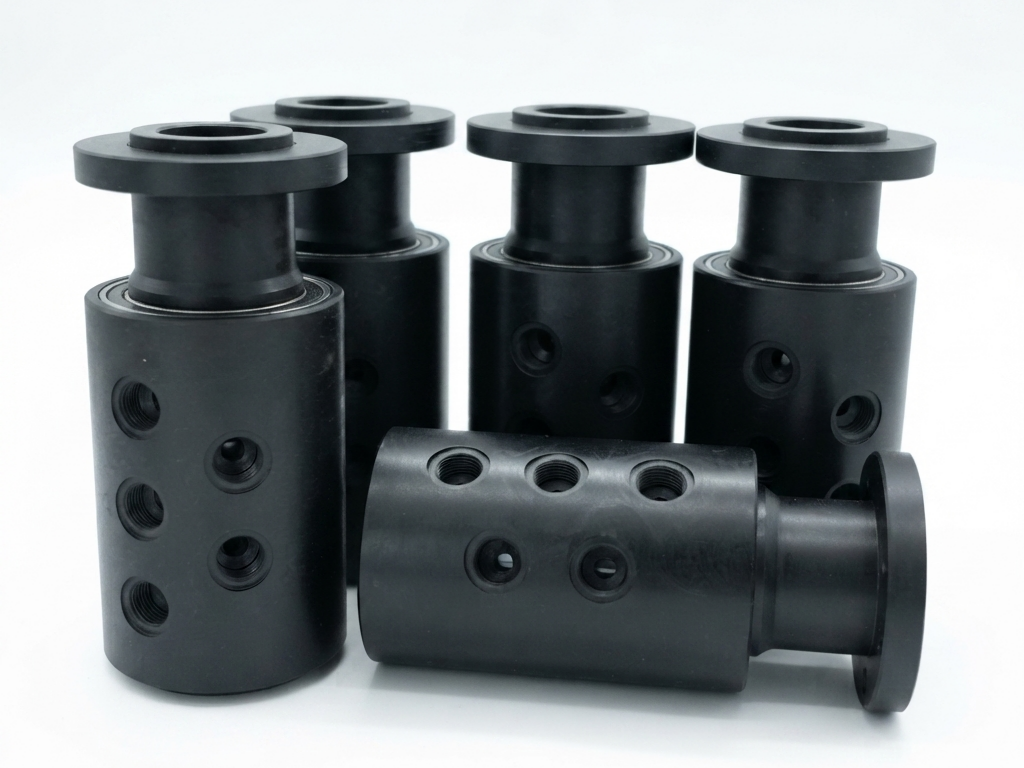

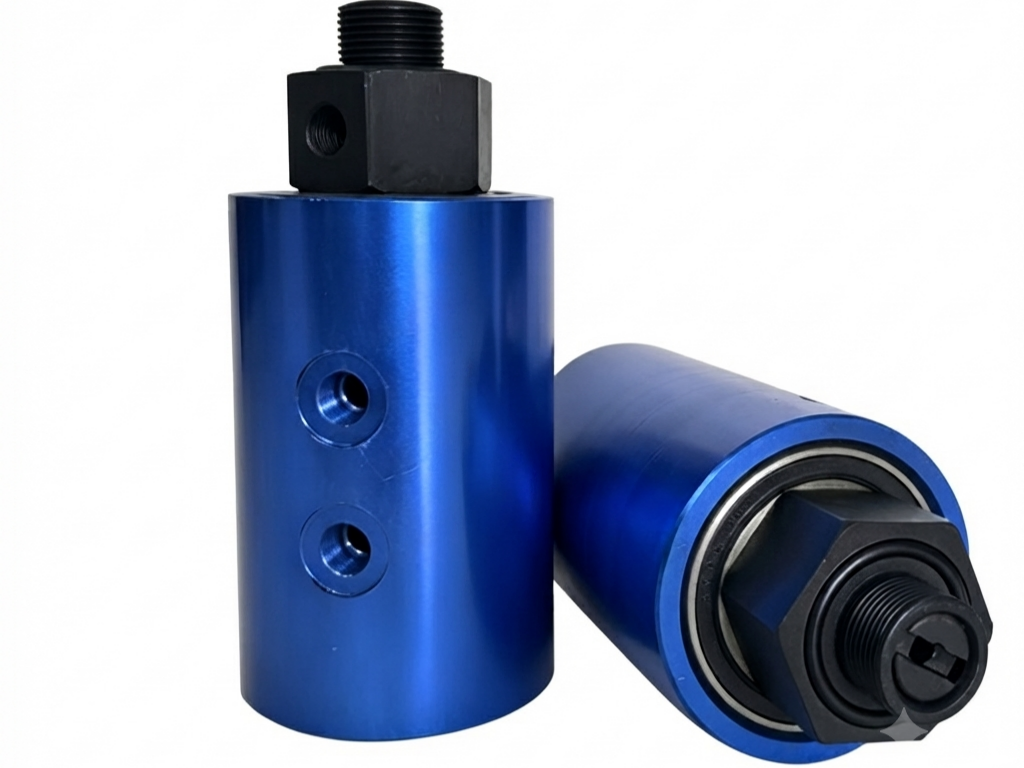

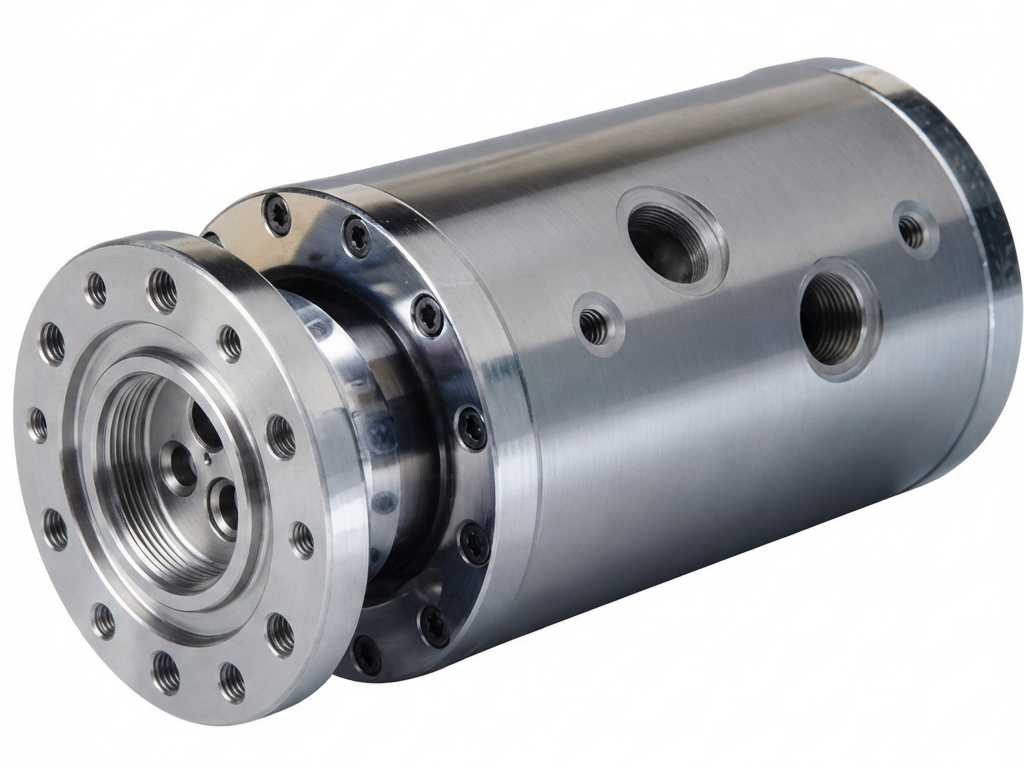

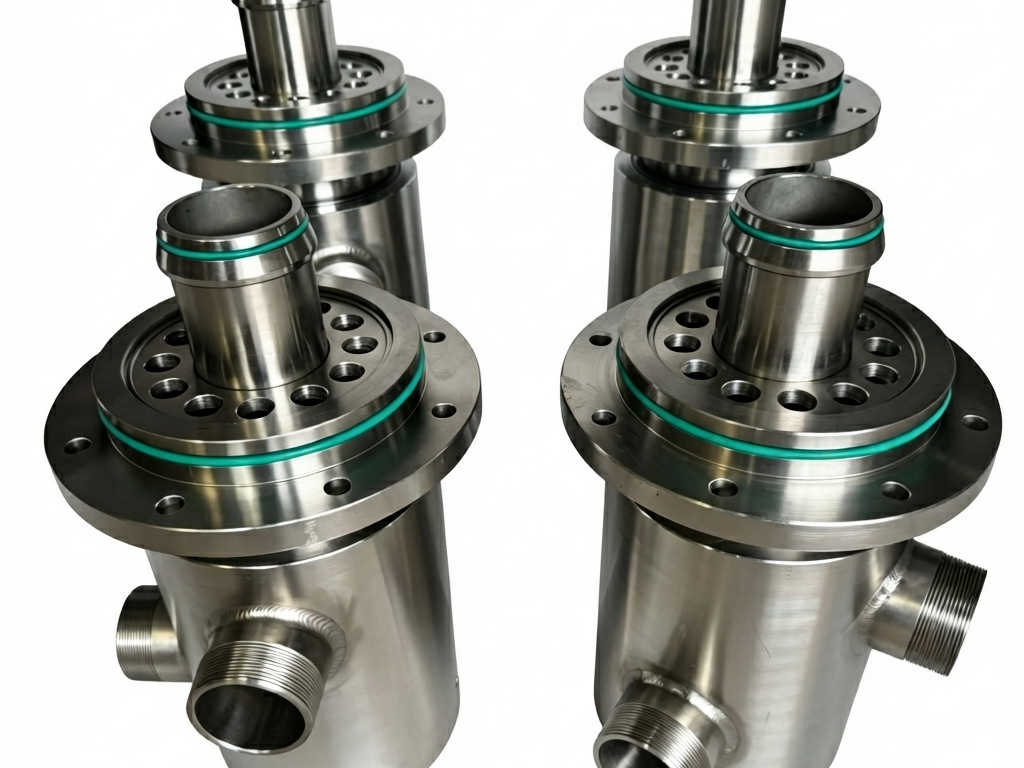

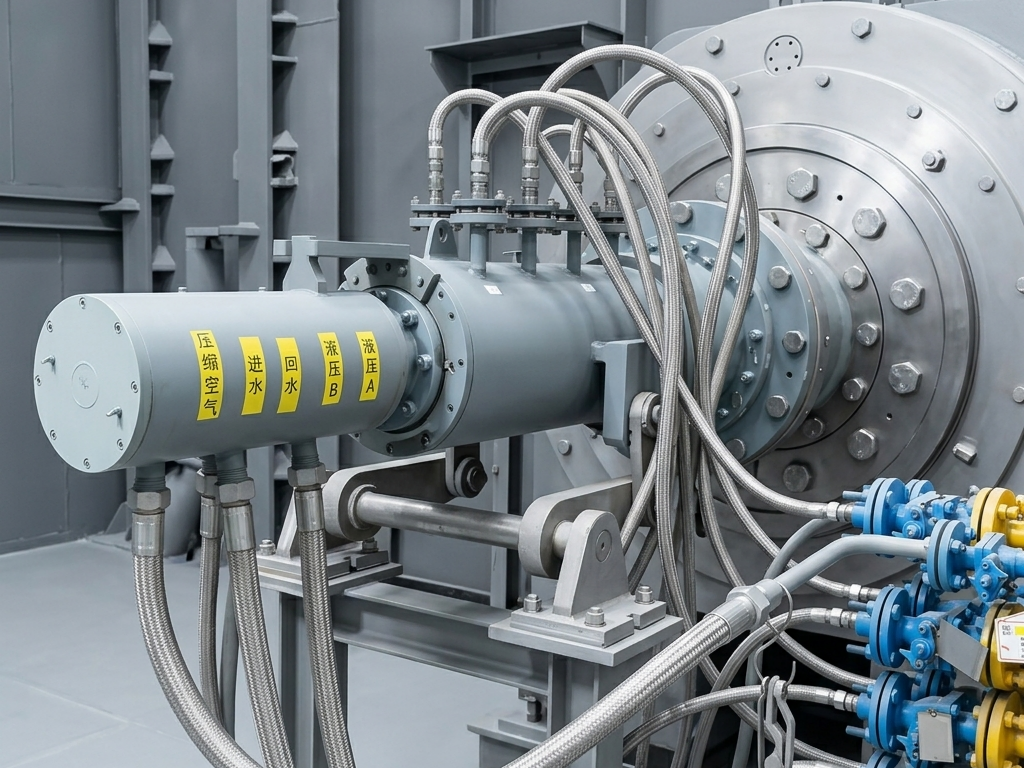

Product Gallery
Get in Touch
Send Us Your Drawing or Duty Conditions
Tell us the medium, temperature, pressure, speed and connection size. Our engineers reply with a selection or a custom proposal — usually within one working day.
