High-Speed Rotary Joint with Through-Spindle Coolant for CNC
Through-spindle coolant or MQL for CNC machining centers
Overview
Designed specifically for CNC machining centers, this high-speed rotary joint supports single-passage coolant or MQL. Features a closed seal design for automated production lines, full-flow design to prevent clogging, and silicon carbide balanced mechanical seal.
Key Features
- Through-spindle coolant or MQL support
- Closed seal design for automated lines
- Full-flow design prevents clogging
- SiC balanced mechanical seal
Typical Applications

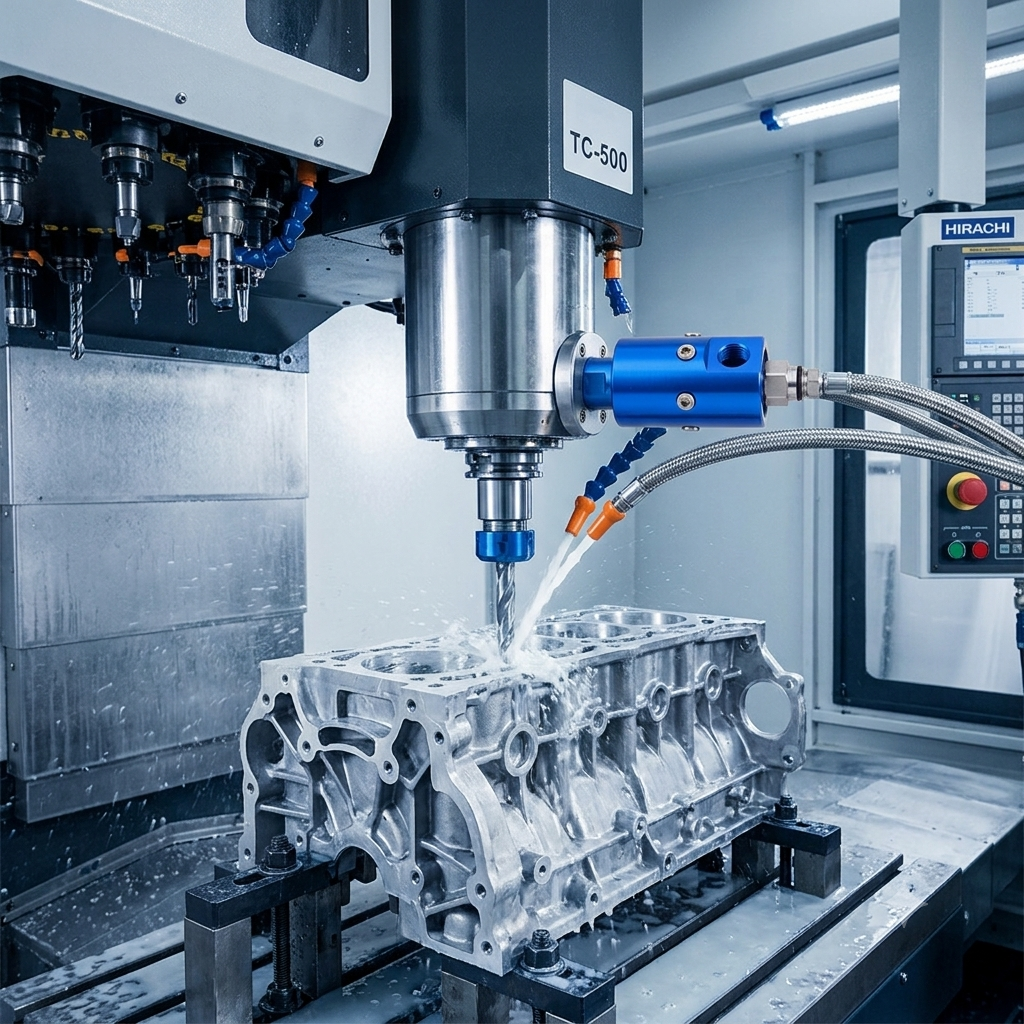

CNC machining centers
High-speed milling and drilling
Automated manufacturing
Operating Conditions
| Media | Coolant, MQL (oil mist) |
|---|---|
| Max Pressure | 10 MPa |
| Max Temperature | 100°C |
| Speed Range | Up to 10,000 rpm (MQL) |

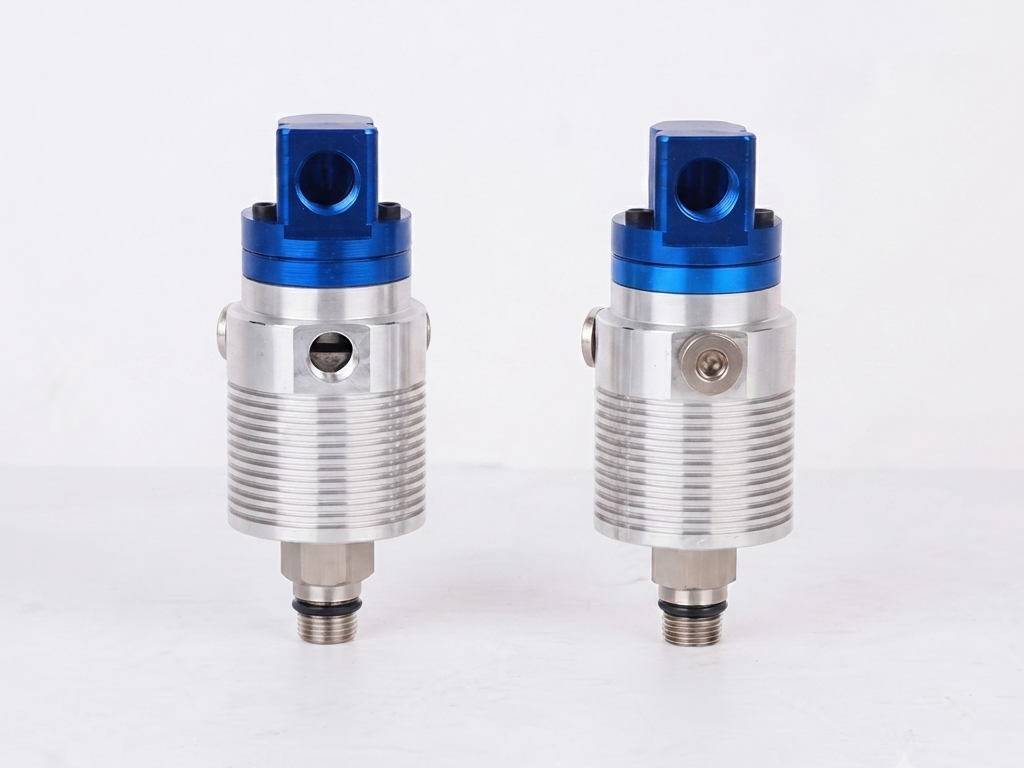

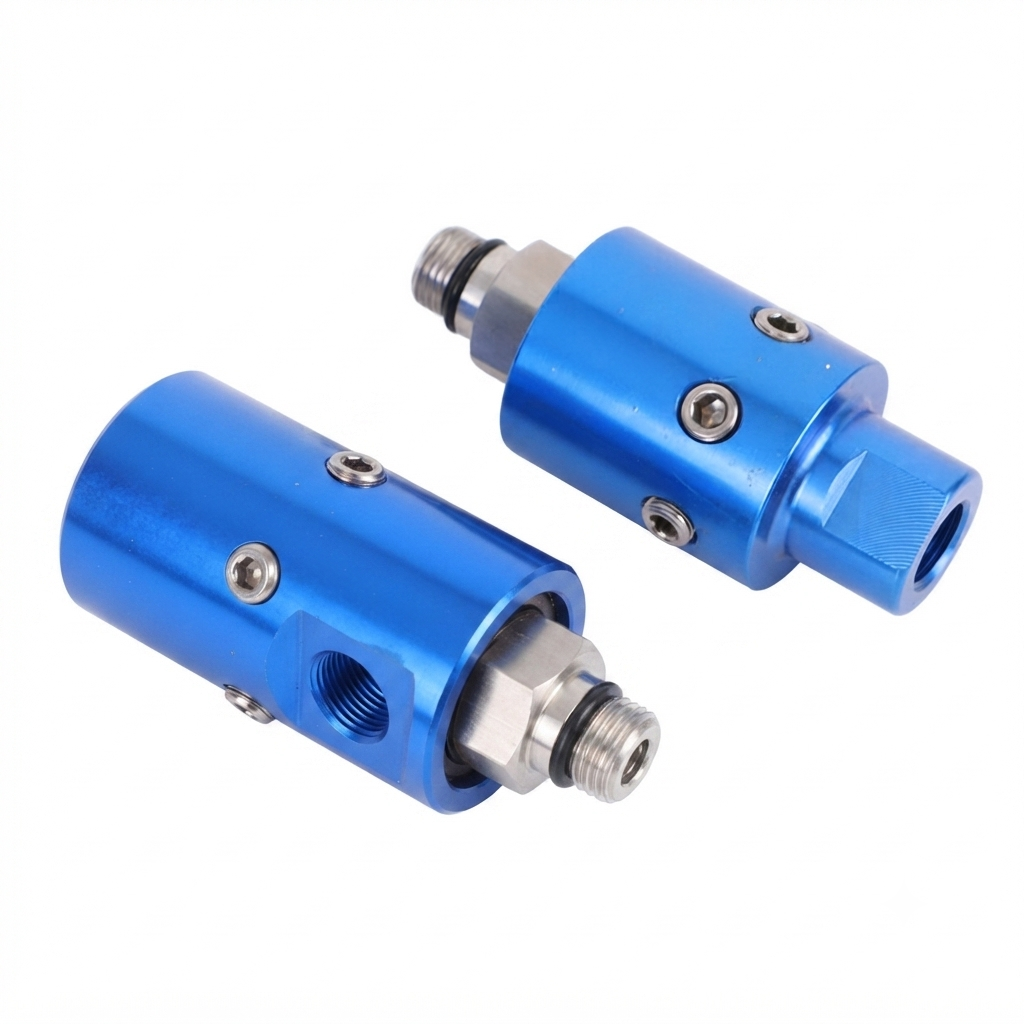

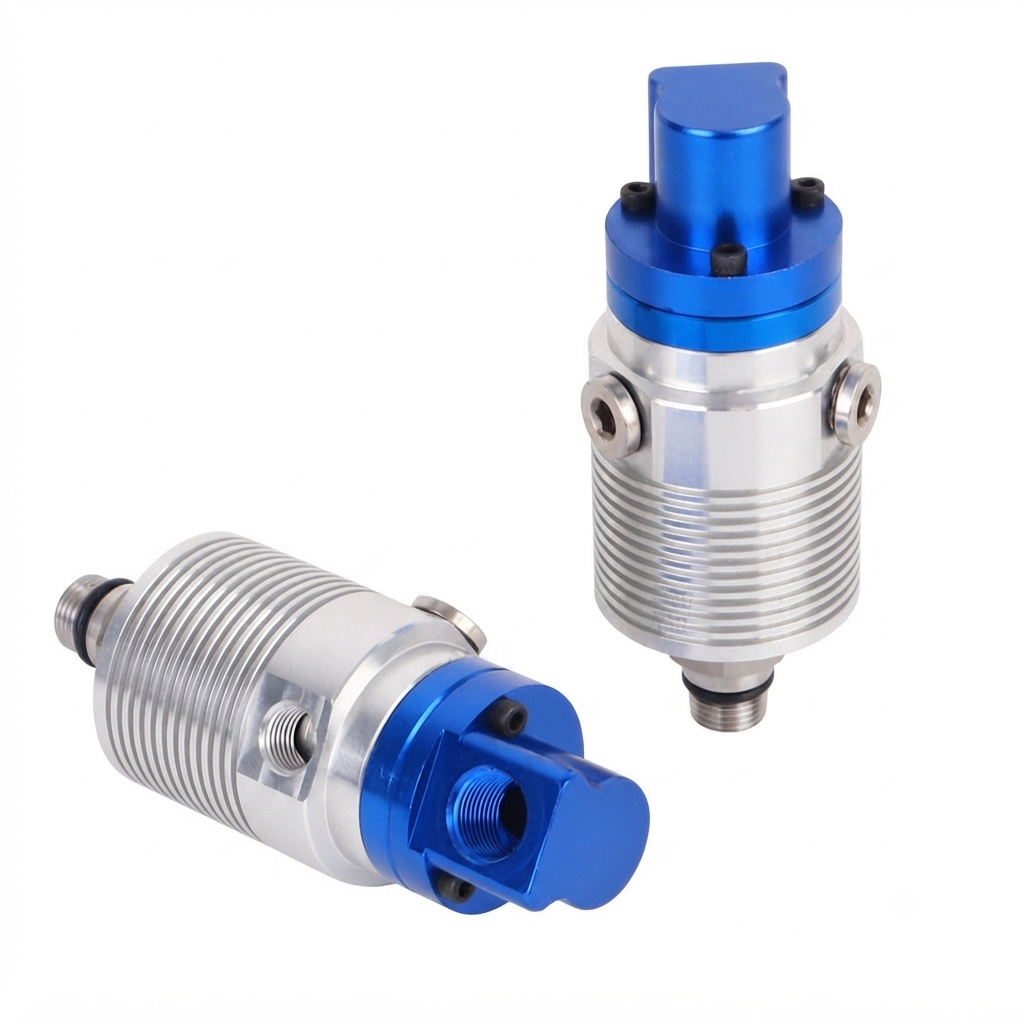

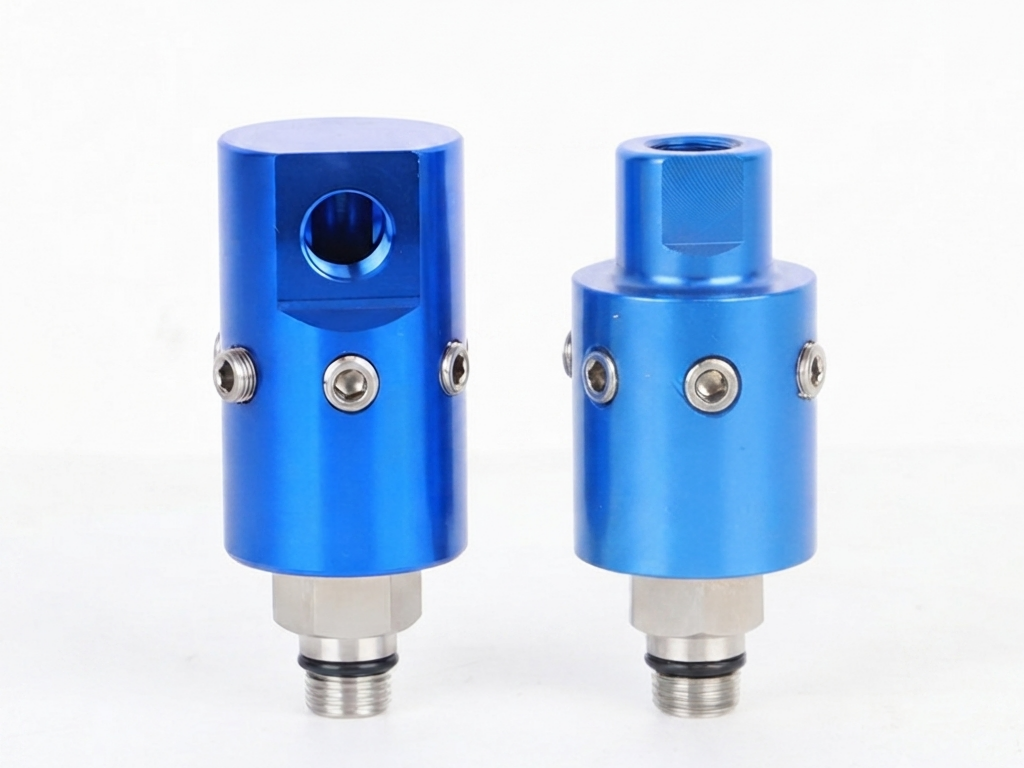

Product Gallery
