Interchangeable with: 55-57 Series

RT-DE Series — Rotary Union & Joint for Water/Coolant


Direct interchange with 55-57 series, forged brass housing

Overview


The RT-DE series is a direct alternative to imported 55-57 series rotary joints (DSTI / Deublin class) used on CNC machine tools and high-speed spindles. It keeps the original mounting interface, so replacement is a drop-in swap, and it is available in single-passage and dual-passage designs with self-supported or bearing-supported rotors to match the original configuration.

The sealing system is a balanced mechanical seal with an optional silicon carbide pair for abrasive coolants. The housing is forged brass for strength and heat dissipation, the rotor is stainless steel, and three drain ports give leak water a safe exit path — a small detail that keeps automated lines running clean. Rated 1.6 MPa / 120 °C at speeds up to 5,500 rpm for coolant, hot and cold water, oil, compressed air and low-pressure steam.

Selecting a replacement takes one photo and two dimensions: send the nameplate photo plus mounting and connection dimensions, and we confirm drop-in compatibility within 24 hours. Choose dual-passage when the spindle needs two independent circuits (for example through-spindle coolant plus outer flush); choose bearing-supported rotors for the highest speeds. Standard threads and port sizes cover the common 55-57 range.

Field results back the switch — a Vietnamese packaging plant reorders 3–5 times a year after moving from Deublin 55, and an Indian belt manufacturer has already reordered three times. Standard units ship in 3–15 days with a minimum order of 1 unit, priced as a fraction of the imported original. Send your nameplate photo for a firm quotation.

Specifications & Model Codes


Water-Service Replacement Program — Operating Data (55/57 · 755 · 6200-6400 Equivalents)

Ref. seriesSize rangeMax. water pressureMax. speedMax. temp.Steam (intermittent)Seals — standard / E.L.S.
55 / 57 equiv.DN 10–50750 PSI (50 bar) — 55-555; 200 PSI (14 bar) — 6552,500–3,500 rpm (750 rpm — 655)120 °C14 PSI (1 bar)Carbon graphite / bronze · graphite / ceramic
755 equiv.2½ in200 PSI (14 bar)750 rpm121 °C (250 °F)15 PSI (1 bar)Carbon graphite / ceramic · tungsten carbide / ceramic
6200–6400 equiv.2 in – 4 in flanged150 PSI (10 bar)750 rpm121 °C (250 °F)—Carbon graphite / tungsten carbide · SiC / tungsten carbide

Seals: graphite/bronze standard for clean water; E.L.S. long-life graphite/ceramic (up to 90 °C) for abrasive or dirty water. Cold water (max 50 °C) allows pressures above 8 bar; hot-oil rating 100 PSI (6.6 bar) in the 55/57 range. Single-flow rotors are supplied with a plug instead of an elbow; the dual-flow design carries a fixed supply pipe.

Single-Flow Water Joints DN 10–50 — Interface Dimensions (55/57 Equivalent)

DNB rotorO statorA rotor conn.CD1EFGHJK NPT
103/8 NPT / G 3/81/4 NPT / G 1/4G 3/8 RH/LH4510026169.522641/4
151/2 NPT / G 1/23/8 NPT / G 3/8G 1/2 RH/LH (M20×1.5 opt.)57119351912.730793/8
203/4 NPT / G 3/41/2 NPT / G 1/2G 3/4 RH/LH (M27×1.5 / M35×1.5 opt.)7313634191936951/2
251 NPT / G 11/2 NPT / G 1/2G 1 RH/LH (M35×1.5 opt.)83163422225361083/4
321-1/4 NPT / G 1-1/43/4 NPT / G 3/4G 1-1/4 RH/LH91189542831.8461191
401-1/2 NPT / G 1-1/23/4 NPT / G 3/4G 1-1/2 RH/LH (M50×1.5 opt.)108228722938551491-1/4
502 NPT / G 21-1/4 NPT / G 1-1/4G 2 RH/LH118248652950601651-1/4

All dimensions in mm. B/O: NPT or G (parallel) threads share the same envelope. RH/LH rotors available in every size; special metric threads M20×1.5 / M27×1.5 / M35×1.5 / M50×1.5 to order. Reference values for the 55/57-series interface — final dimensions confirmed on order drawings.

Dual-Flow (DUO) Water Joints DN 10–50 — Interface Dimensions (55/57 Equivalent)

DNB rotorO statorA rotor conn.CD1EFGHJK NPT
103/8 NPT / G 3/81/4 NPT / G 1/4G 3/8 RH/LH4512426169.522641/4
151/2 NPT / G 1/23/8 NPT / G 3/8G 1/2 RH/LH57147351912.730793/8
203/4 NPT / G 3/41/2 NPT / G 1/2G 3/4 RH/LH7317134191936951/2
251 NPT / G 11/2 NPT / G 1/2G 1 RH/LH83200422225361083/4
321-1/4 NPT / G 1-1/43/4 NPT / G 3/4G 1-1/4 RH/LH91234542831.8461191
401-1/2 NPT / G 1-1/23/4 NPT / G 3/4G 1-1/2 RH/LH108270722938551491-1/4
502 NPT / G 21-1/4 NPT / G 1-1/4G 2 RH/LH118312652950601651-1/4

All dimensions in mm. For dual-flow service the supply and return lines connect to one side of the cylinder or roll; keep supply-pipe length ≤ 4 × D2. Max speed 1,000 rpm with threaded supply pipes, 3,500 rpm with divided or self-centering supply pipes (DN10 excluded in the self-centering execution). Final dimensions confirmed on order drawings.

Large-Bore Flanged Water Joints 2 in – 4 in (6200-6400 Equivalent)

Ref. modelSizeA rotorCD1EFGJWeight
6200 equiv.2 in2″ NPT RH/LH · G2″ (BSP)13329563.528.6472289.5–14.5 kg (21–32#)
6250 equiv.2½ in2½″ NPT RH/LH · G2½″ (BSP)17837182.538.16029020 kg (44#)
6300 equiv.3 in3″ NPT RH/LH · G3″ (BSP)2294339544.47333544.5 kg (98#)
6400 equiv. †4 in10¼″ O.D. flange27948376610242671 kg (156#)

All dimensions in mm. Torque ratings: 6200 5.4 Nm · 6250 9.5 Nm · 6300 10.9 Nm · 6400 13.6 Nm. Steel-band floating seal, full-media flow and vent slots standard. † 6400 figures are being verified against certified drawings — please confirm before ordering. Dual-flow rotating/fixed-pipe executions available on request.

Strippable Water Joint 2½ in (755 Equivalent)

Ref. modelA rotorCD1D2EFGHJNRWeight
755 equiv.2½″ NPT RH/LH · G2½″ (BSP)17834338182.538.160.383.320710830820 kg

All dimensions in mm. Cast-iron housing (nickel-plated optional) with steel rotor, 3 vent slots, dual ball bearings and a stainless-steel spring. Balanced mechanical seal: carbon graphite/ceramic standard, tungsten carbide/ceramic E.L.S. for abrasive water. Fully strippable design allows seal replacement without removing the joint from the machine.

Images & Dimension Drawings

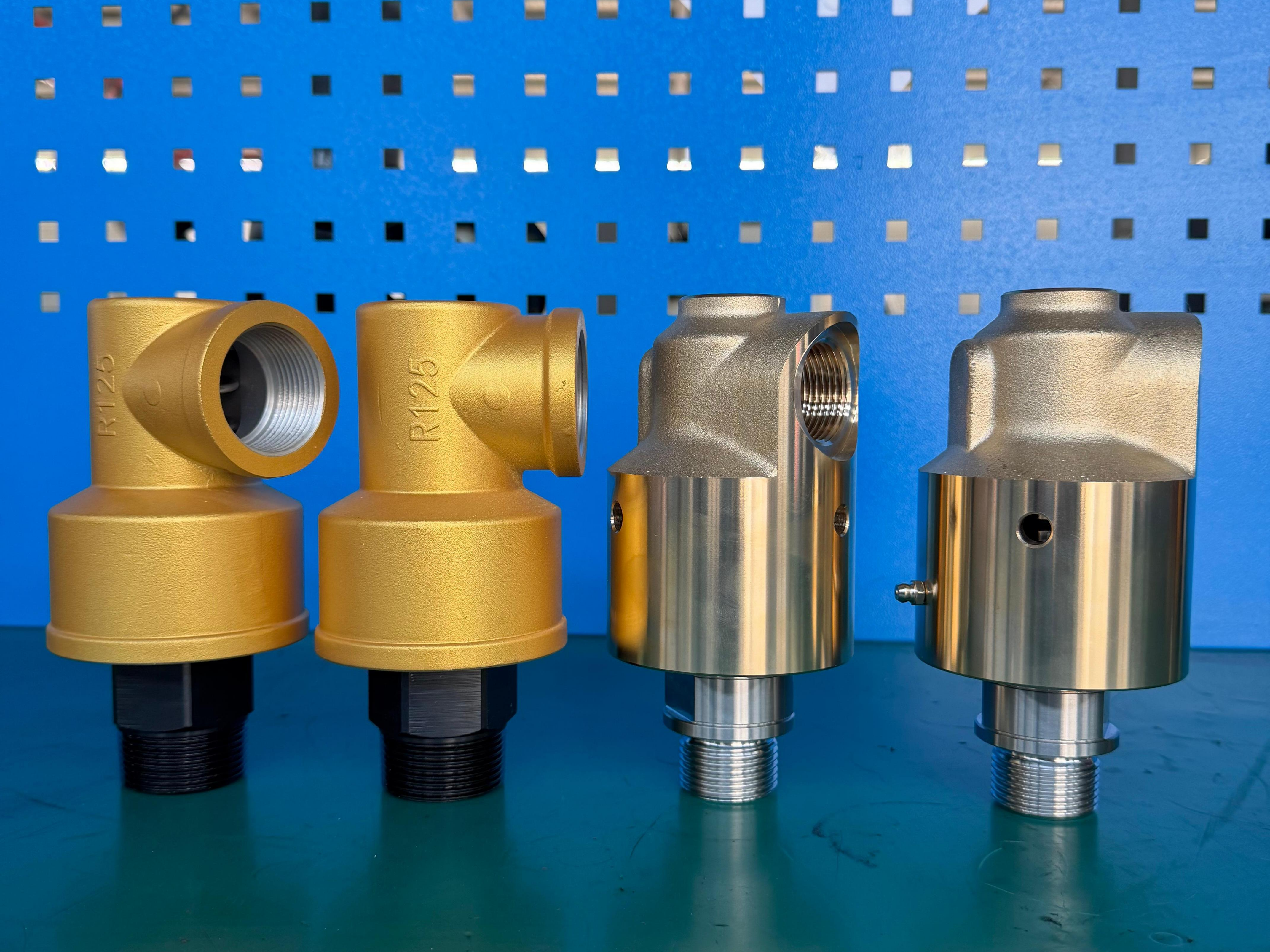

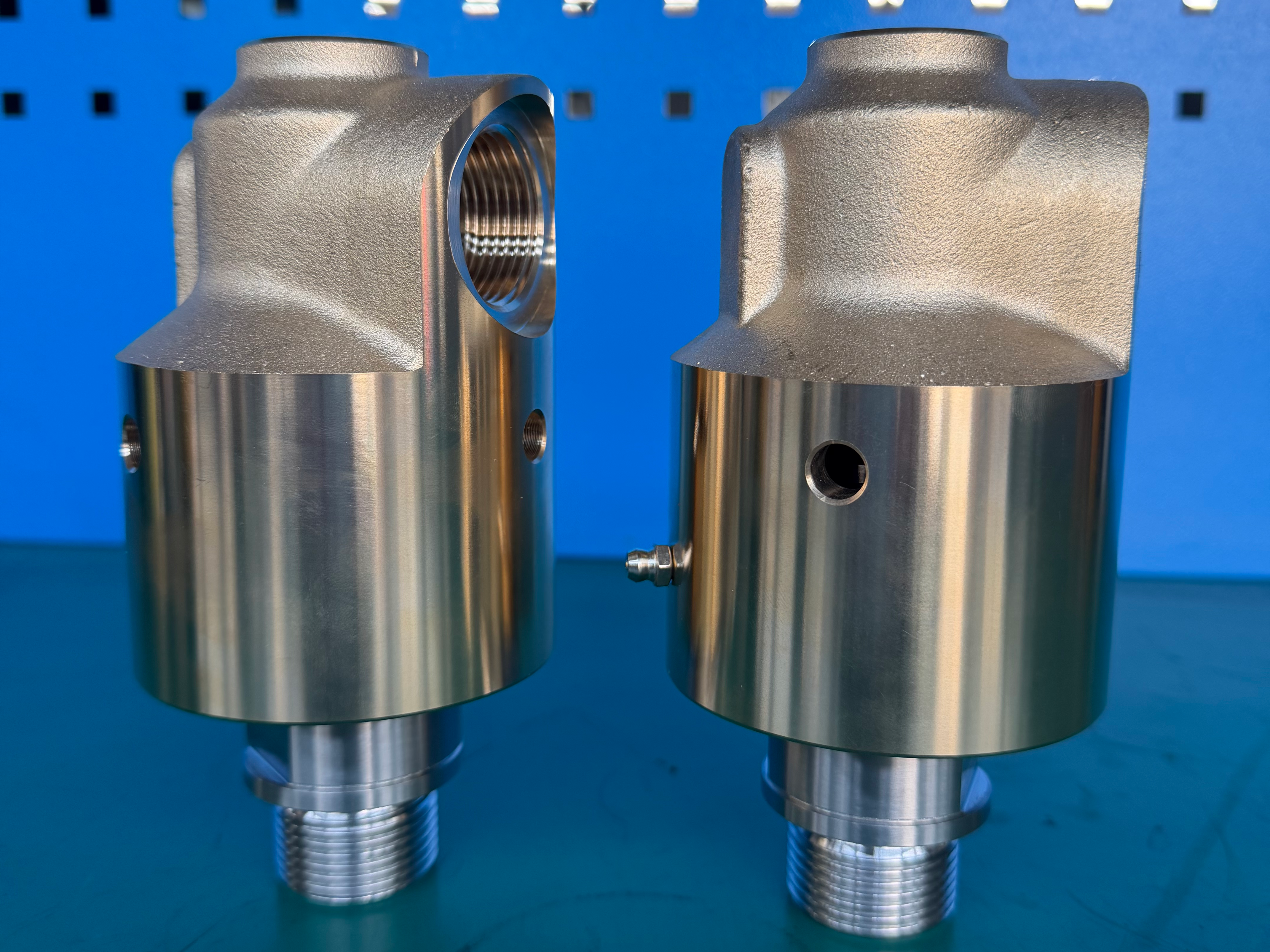

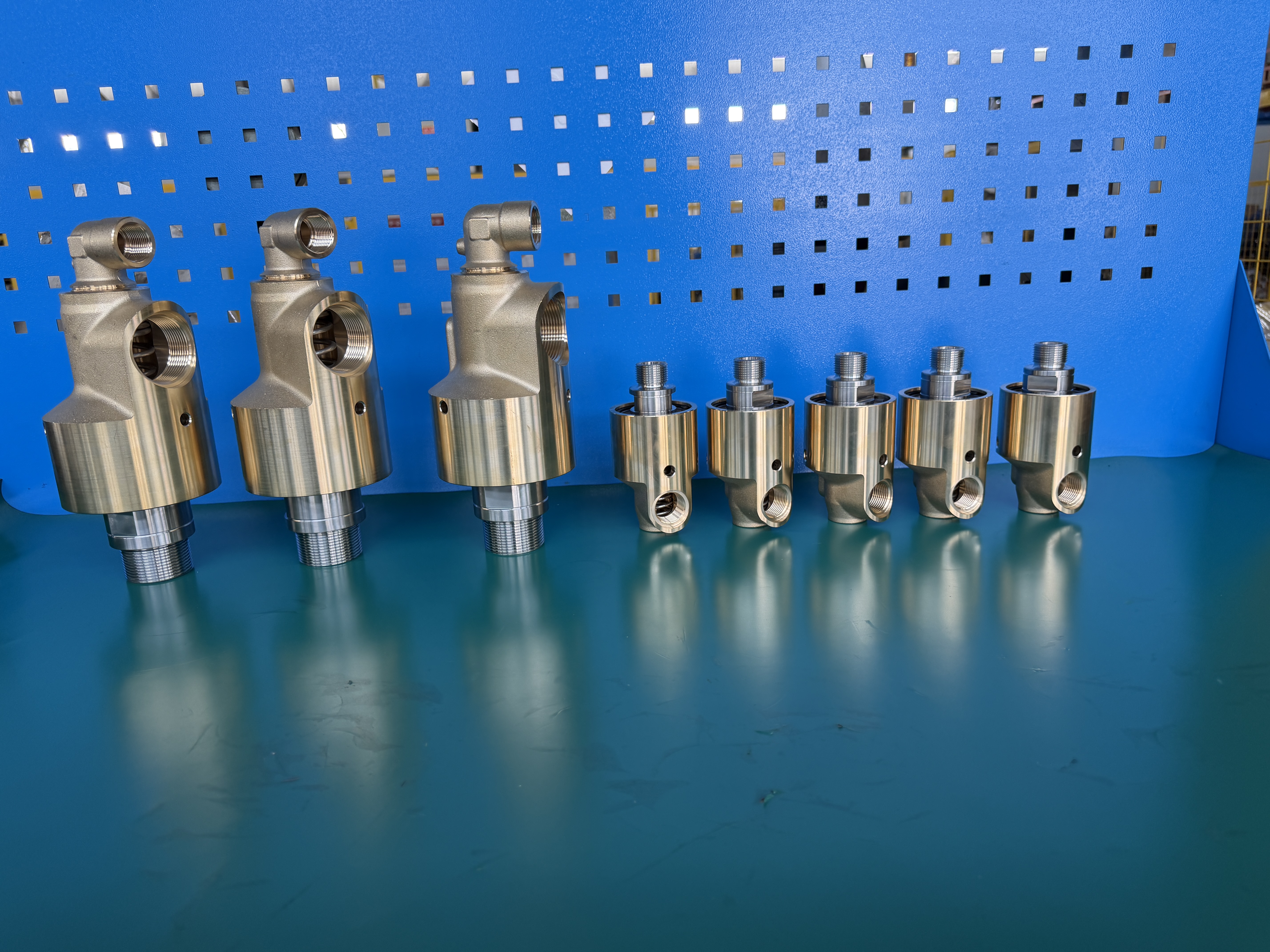

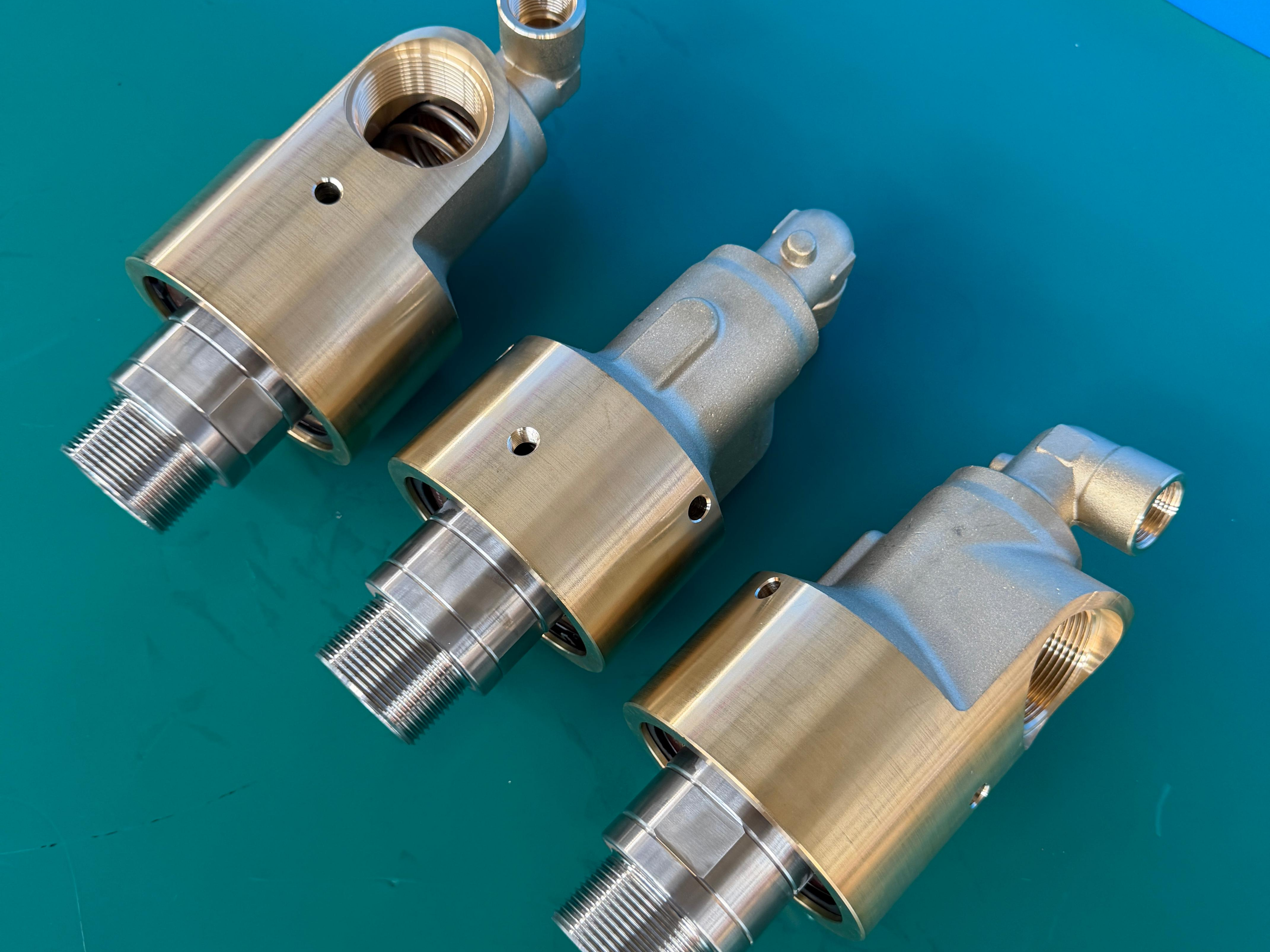

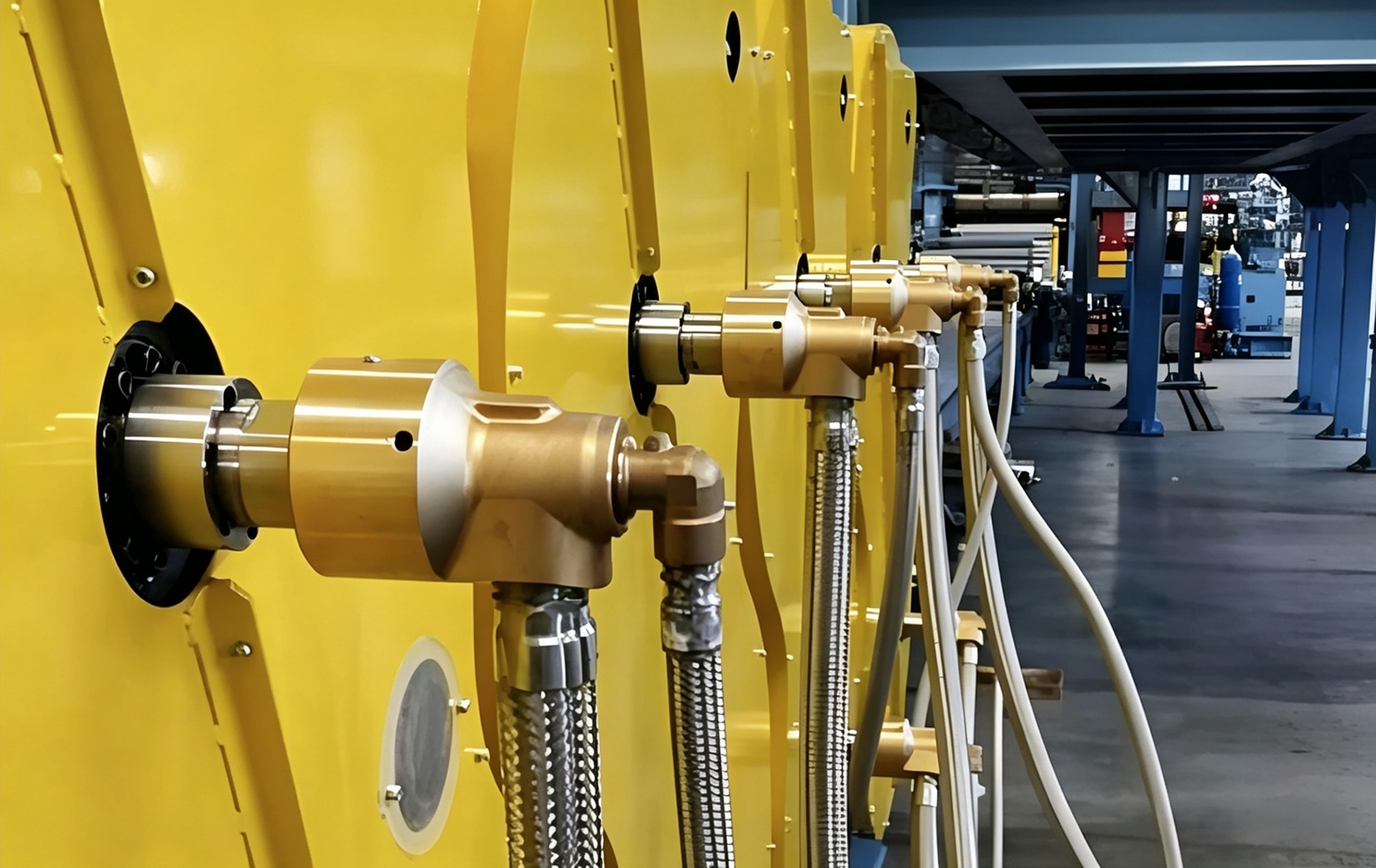

RT-DE Series — Rotary Union & Joint for Water/Coolant — drawing
RT-DE Series — Rotary Union & Joint for Water/Coolant — drawing
RT-DE Series — Rotary Union & Joint for Water/Coolant — drawing
RT-DE Series — Rotary Union & Joint for Water/Coolant — drawing
RT-DE Series — Rotary Union & Joint for Water/Coolant — drawing

Key Features


  • Direct interchange with imported 55-57 series
  • Forged brass housing, stainless steel rotor
  • Balanced mechanical seal with SiC option
  • 3 drain ports, single or dual passage

Typical Applications


CNC machine tool cooling
High-speed spindle applications
Automated production lines

Customer Cases


Packaging manufacturer, Vietnam

A subsidiary of a major international packaging group in Vietnam replaced its Deublin 55 series joints with Ruitus RT-DE equivalents across its production lines. The switch cut joint costs dramatically with no loss in service life — the plant now reorders 3–5 times per year as standard maintenance stock.

Industrial belt manufacturer, India

A leading Indian industrial-belt manufacturer adopted the same RT-DE replacement joints and has already reordered three times, standardising on Ruitus for its plant maintenance programme.

Customer names are anonymized for confidentiality.

Operating Conditions


Media Coolant, hot water, cold water, oil, compressed air, low-pressure steam
Max Pressure 1.6 MPa
Max Temperature 120°C
Speed Range Up to 5,500 rpm

Frequently Asked Questions


1 Which imported rotary joints can the RT-DE series replace?
The RT-DE is a direct interchange with imported 55-57 series rotary joints (DSTI / Deublin class), in both single-passage and dual-passage designs with self-supported or bearing-supported rotors. Send us a nameplate photo and mounting dimensions and we confirm drop-in compatibility within 24 hours — at a fraction of the imported price.
2 What are the operating limits and seal options of the RT-DE?
Rated 1.6 MPa / 120 °C at speeds up to 5,500 rpm, handling coolant, hot/cold water, oil, compressed air and low-pressure steam. It uses a balanced mechanical seal (silicon carbide option) with a forged brass housing and stainless steel rotor, and offers 3 drain ports for safe leak evacuation.
3 How do I choose between single-passage and dual-passage RT-DE?
Match the original configuration: if the spindle needs two independent circuits — e.g. through-spindle coolant plus external flush — choose dual-passage; for a single coolant circuit, single-passage is enough. If you are unsure, send the nameplate photo and we confirm which version is drop-in compatible within 24 hours.
4 What is the difference between self-supported and bearing-supported rotors?
A self-supported rotor runs on the seal faces and is compact — ideal for standard speeds and easy maintenance. A bearing-supported rotor carries the load on precision bearings, giving smoother rotation at the top end of the speed range (up to 5,500 rpm) and longer seal life under continuous duty. We match whichever type the original joint used.
5 What are the lead time and minimum order quantity for RT-DE?
Standard RT-DE models ship in 3–15 days after order confirmation, with a minimum order of 1 unit — so you can replace one failed joint without stocking up. Large-volume orders may need longer; the exact schedule is confirmed in the quotation. Repeat maintenance orders from packaging and belt plants typically ship on the same terms.
6 Do you also cover the larger water joints (755 / 6200-6400 equivalents)?
Yes. Beyond the 55-57 equivalent range, we produce a 755-equivalent strippable joint (2½ in) rated 200 PSI / 750 rpm and 6200-6400-equivalent flanged joints (2 in – 4 in) rated 150 PSI / 750 rpm for roll cooling and large-bore water service. Send the nameplate photo and we confirm the drop-in match within 24 hours.
