Rotary Joint for Converters, Mud Guns & Ladle Turrets
Multi-passage slip ring for steel industry ladle turrets and converters
Overview
Specifically designed for ladle turrets and converters in the steel industry, independently handling the entry and exit of oil, water, and air across various passages. Utilizes imported sealing components with honed, polished, and carbonitriding-treated friction surfaces. Slip ring can be designed with several to over twenty passages.
Key Features
- Multi-passage slip ring (up to 20+ passages)
- Imported sealing components
- Honed and polished friction surfaces
- Customizable for specific equipment
Typical Applications
Ladle turrets in steel plants
Metallurgical converters
Mud gun systems
Operating Conditions
| Media | Coolant, hot water, cold water, oil, compressed air |
|---|---|
| Max Pressure | 35 MPa |
| Max Temperature | 80°C |
| Speed Range | 0 – 200 rpm |

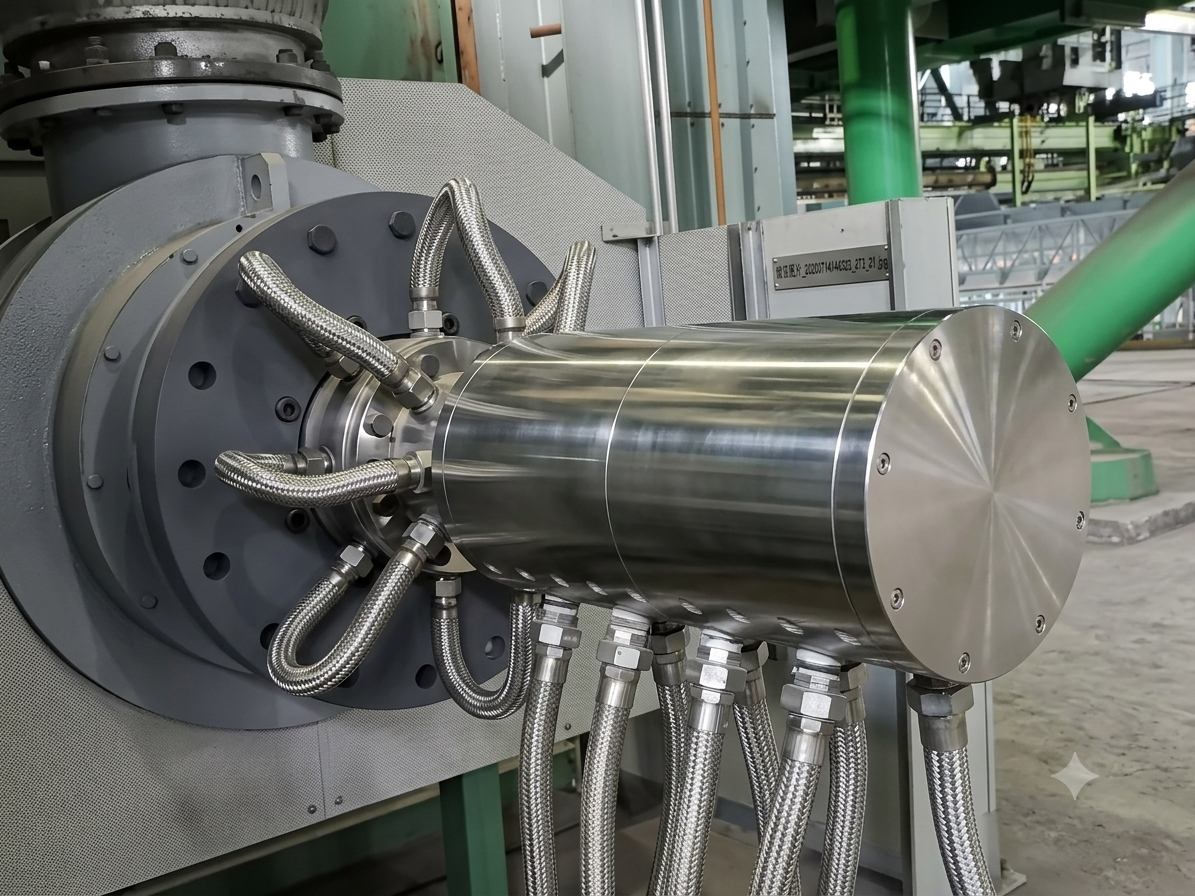

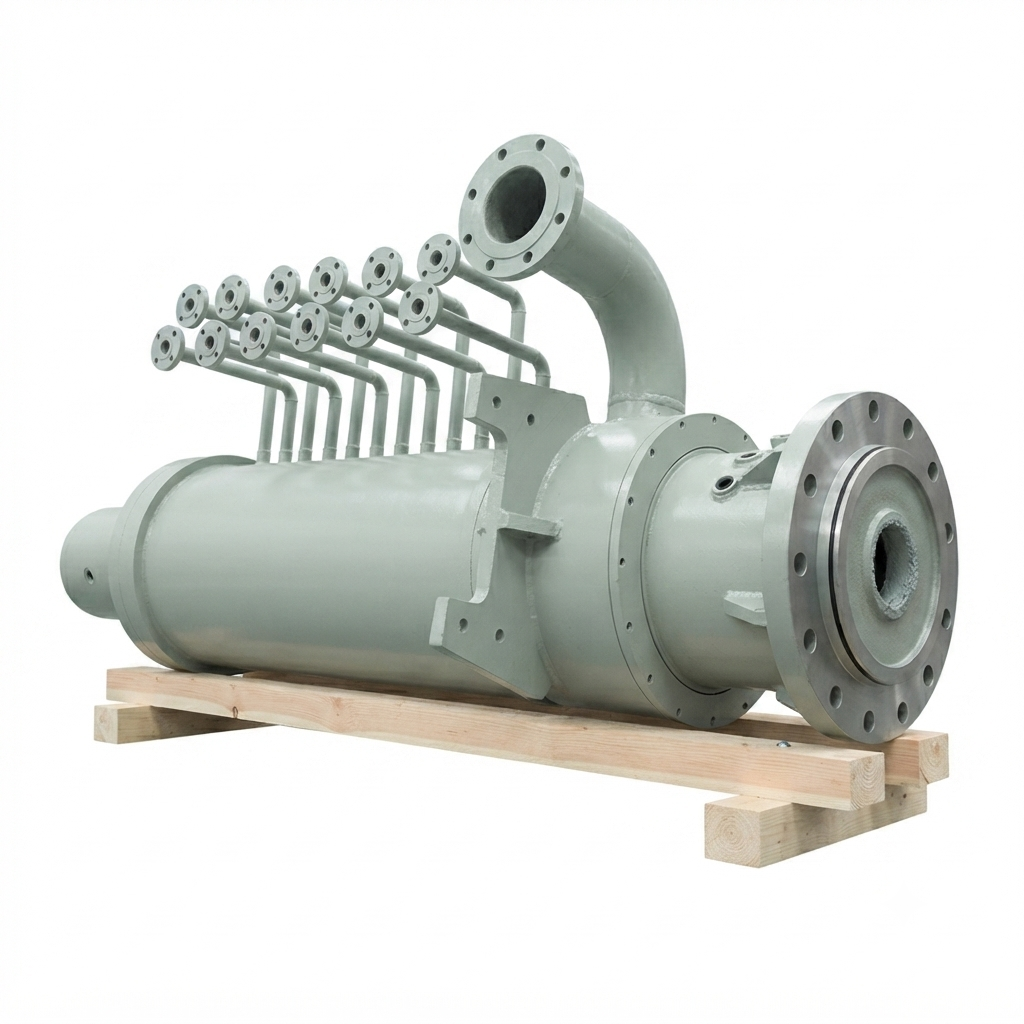

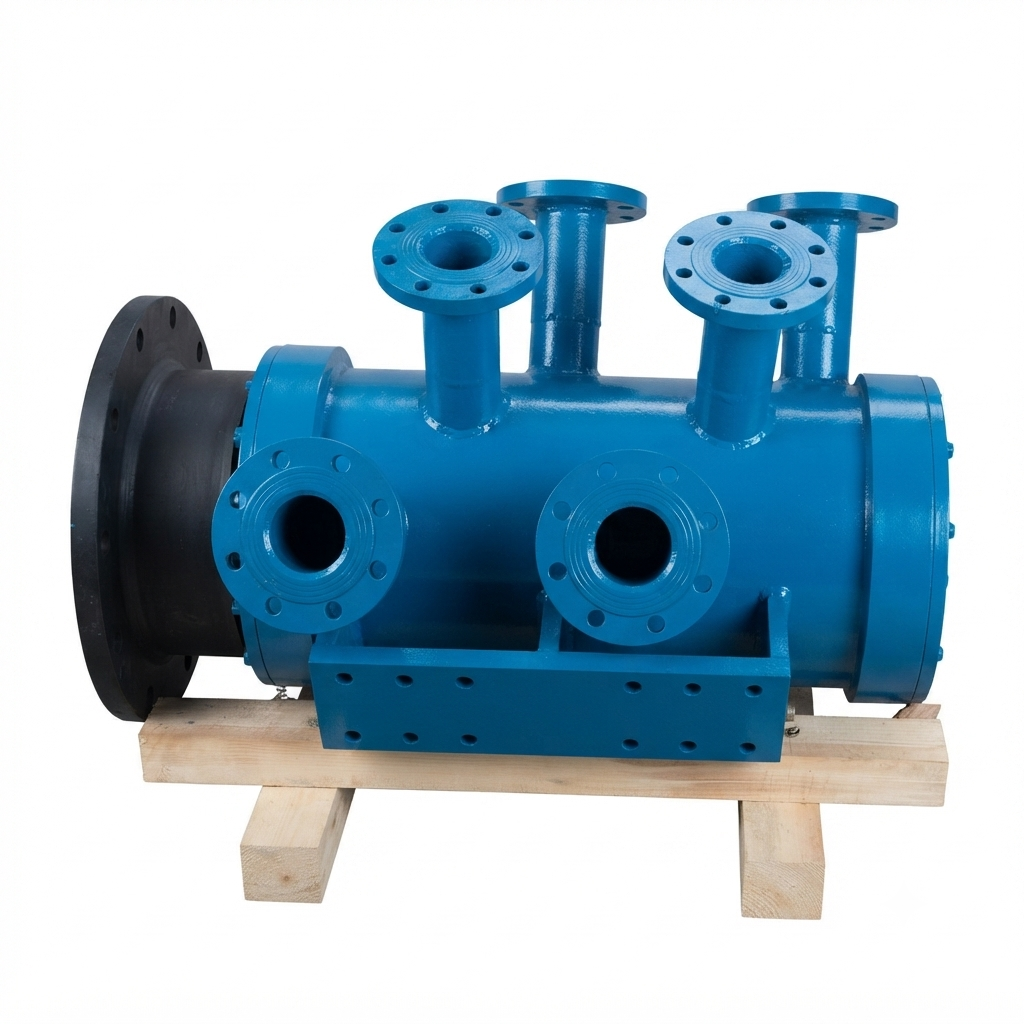

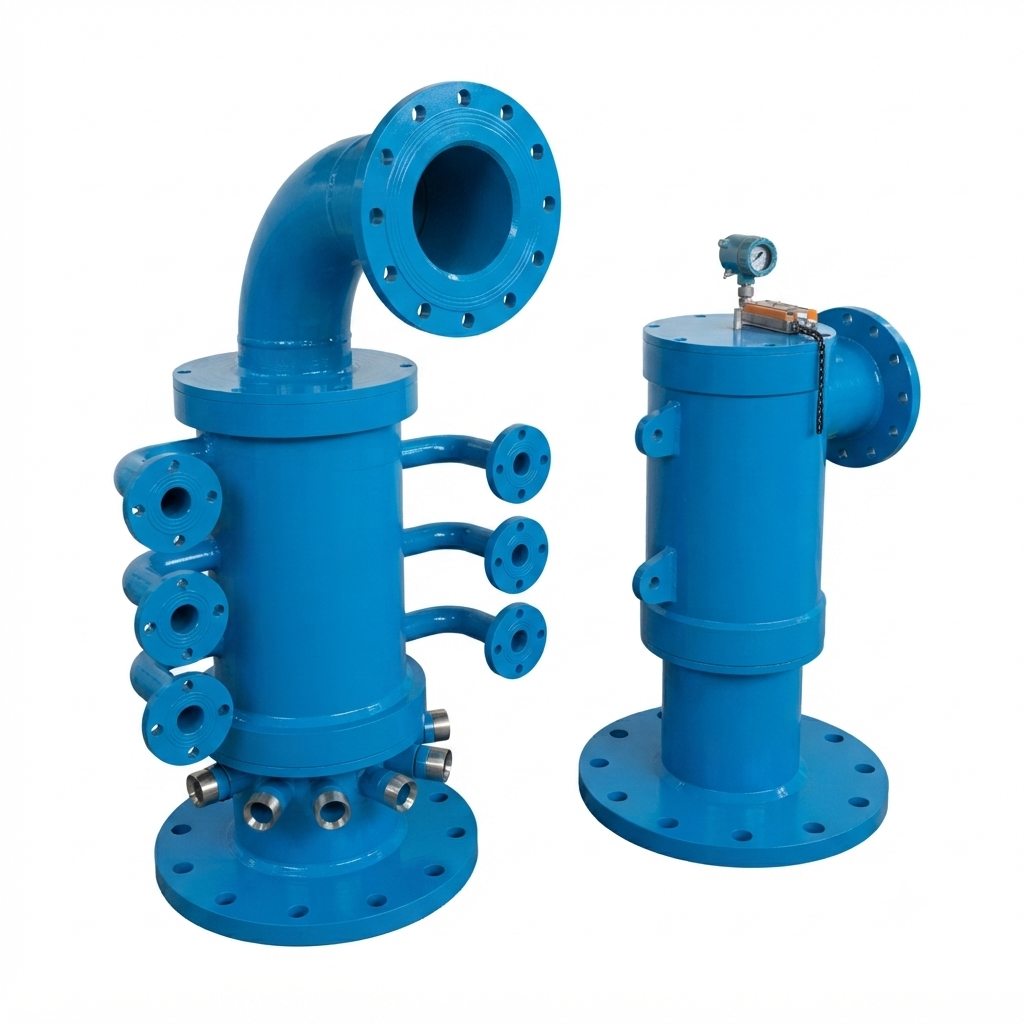

Product Gallery
Get in Touch
Send Us Your Drawing or Duty Conditions
Tell us the medium, temperature, pressure, speed and connection size. Our engineers reply with a selection or a custom proposal — usually within one working day.
