RT-QT — Spherical Rotary Joint for Walking Beam Furnaces
Key component for walking beam furnace evaporative cooling systems
Overview
The RT-QT spherical rotary joint connects cooling components performing periodic movements on walking beam heating furnaces with stationary components, allowing both rotation and angular oscillation. The sealing sphere is stainless steel with polished and hardened surface, while the sealing element adopts PPL (Polyphenylene) material for superior wear resistance and high-temperature tolerance.
Key Features
- Spherical design for rotation and angular oscillation
- Stainless steel sealing sphere, polished and hardened
- PPL (Polyphenylene) sealing material
- International standard quality
Typical Applications

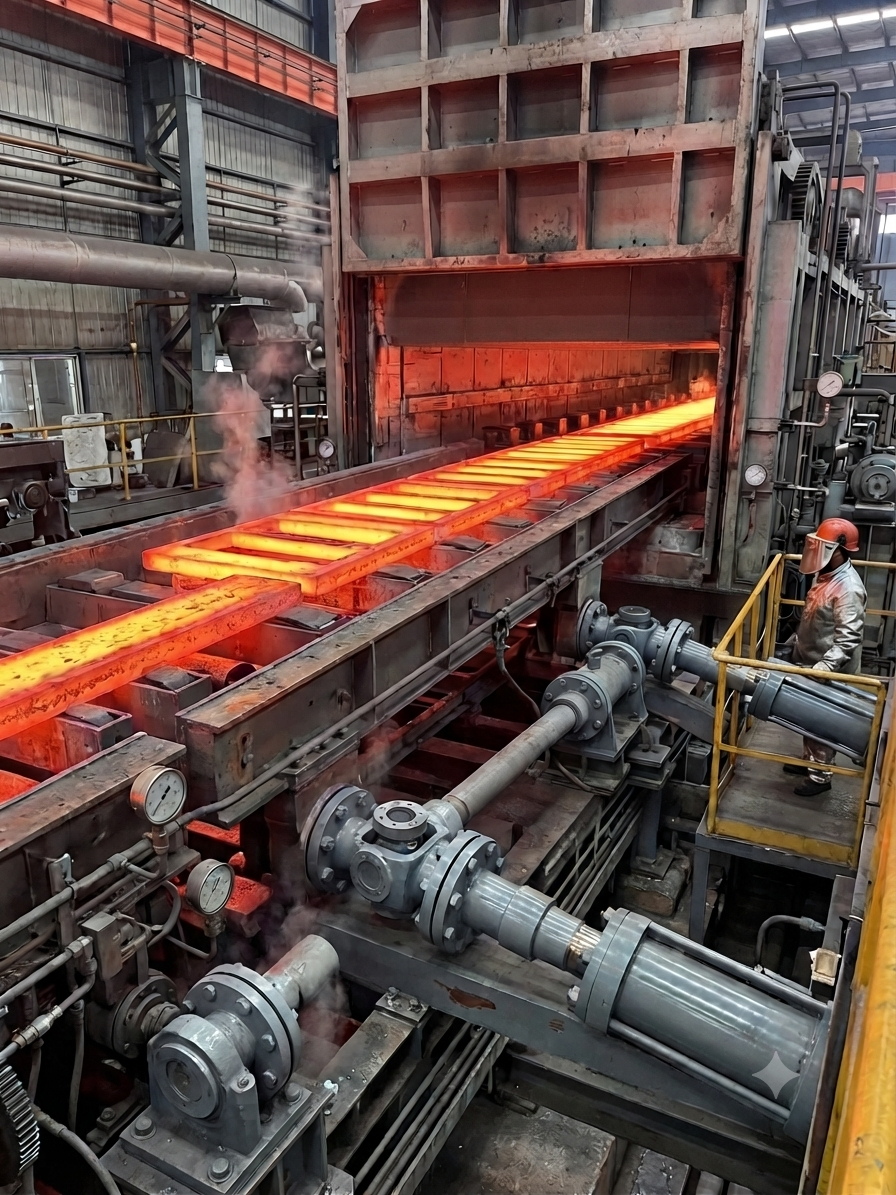

Walking beam heating furnaces in steel plants
Evaporative cooling systems
Operating Conditions
| Media | Water, steam, superheated water |
|---|---|
| Max Pressure | 4.0 MPa |
| Max Temperature | 350°C |
| Speed Range | Low-speed shaft: 30° max swing angle |
| Notes | Flange standard: JB/TB2/1-94 |

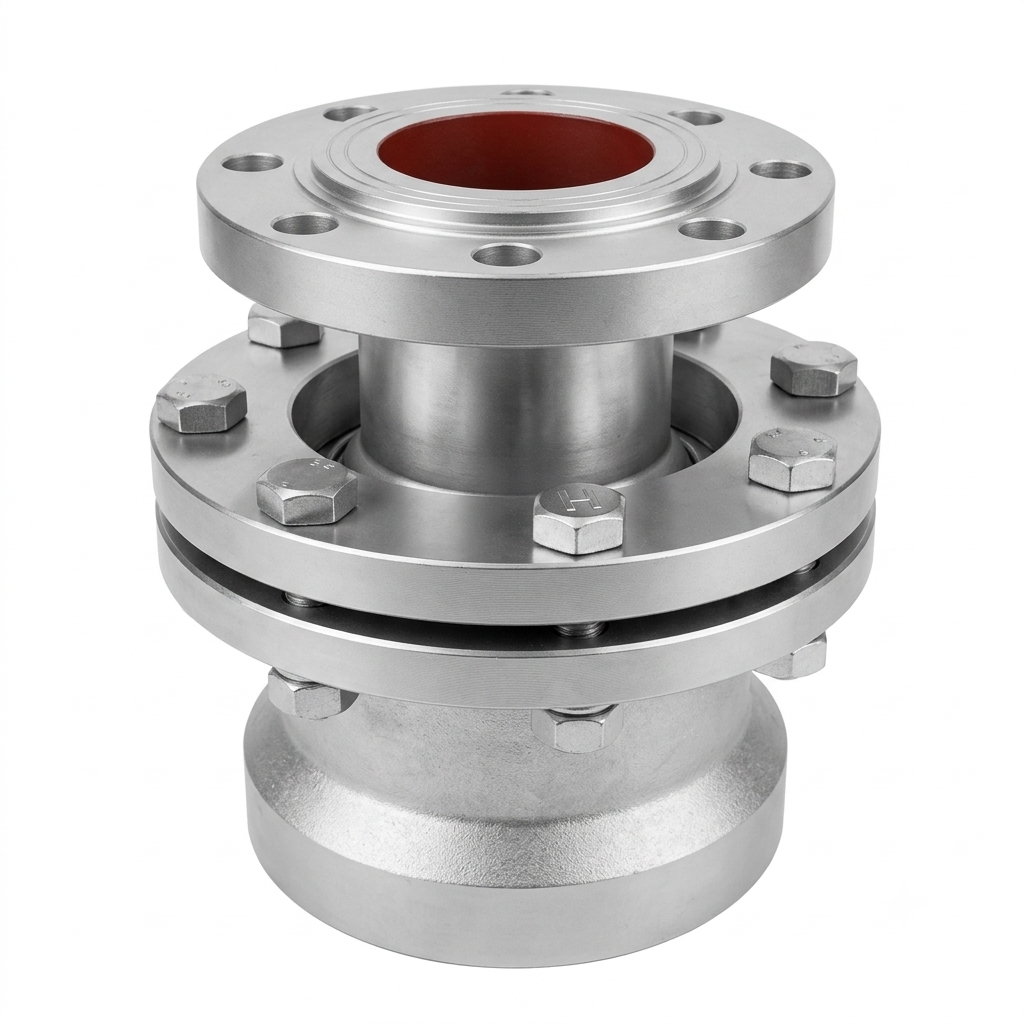

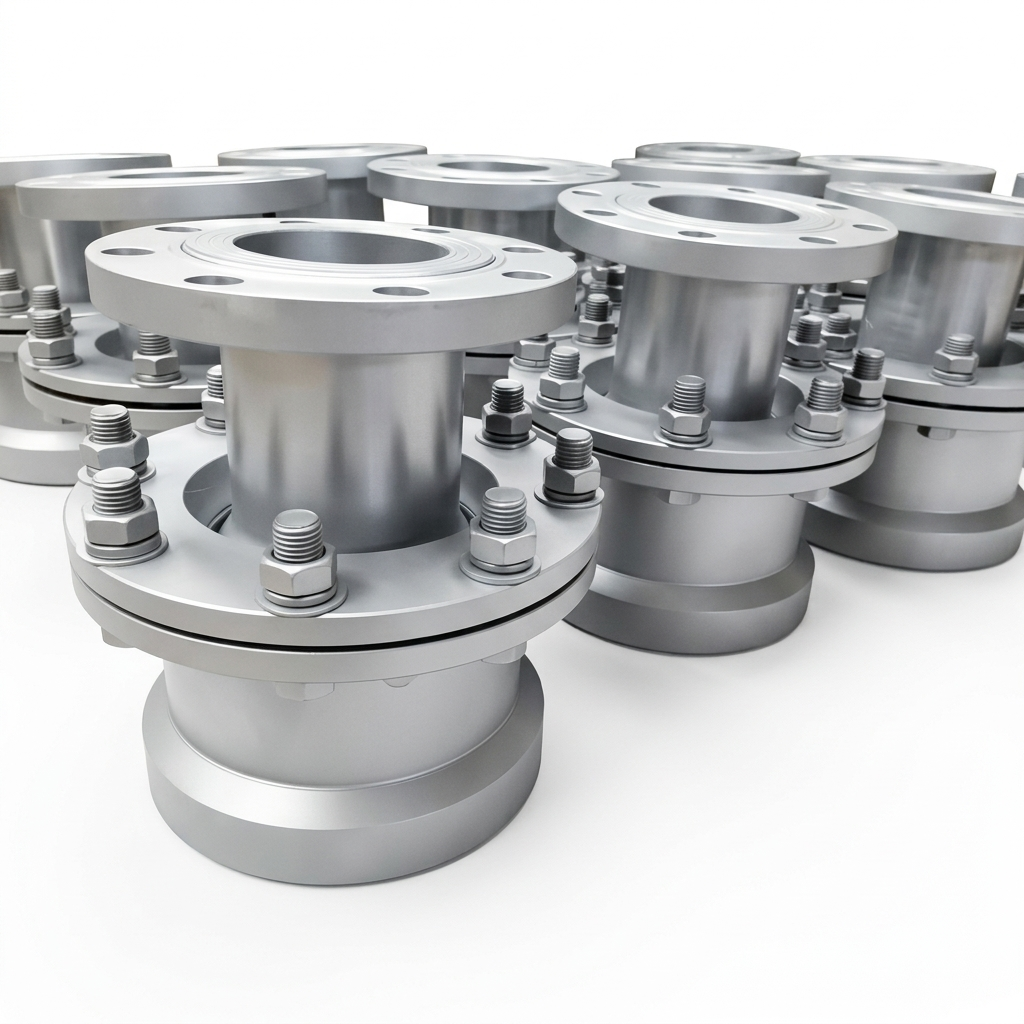

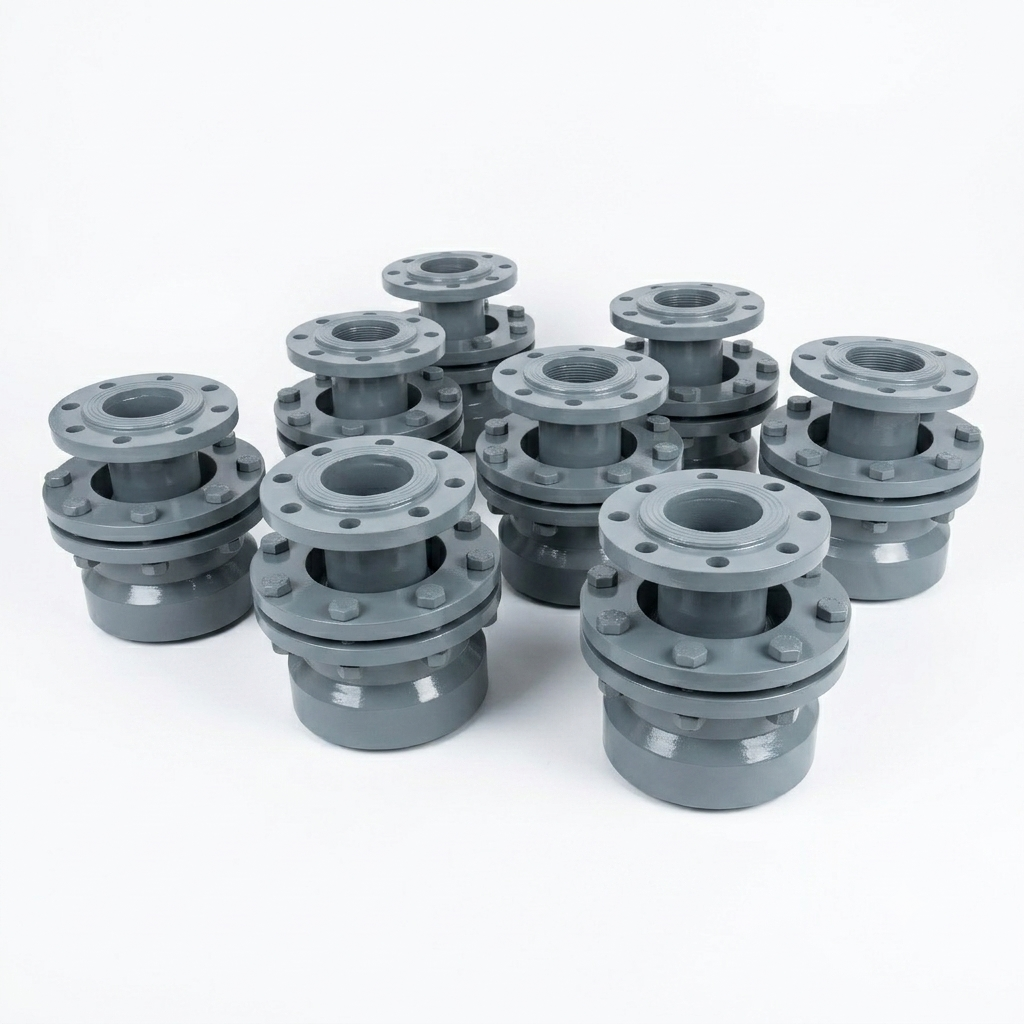

Product Gallery
