Patented
RTH Series — Rotary Joint for Water/Coolant
Patented balanced-seal design for smooth media flow
Overview
The RTH series is a patented rotary joint independently developed based on conventional H-type joints. It features an external multi-spring and balanced seal design, ensuring smoother media flow and uniform elastic compensation free from the adverse effects of scaling. The sealing friction pairs are easily replaceable, significantly reducing maintenance costs.
Key Features
- Patented external multi-spring balanced seal
- Easily replaceable friction pairs
- Stainless steel internals with anti-corrosion treatment
- Compact size, lightweight, low frictional torque

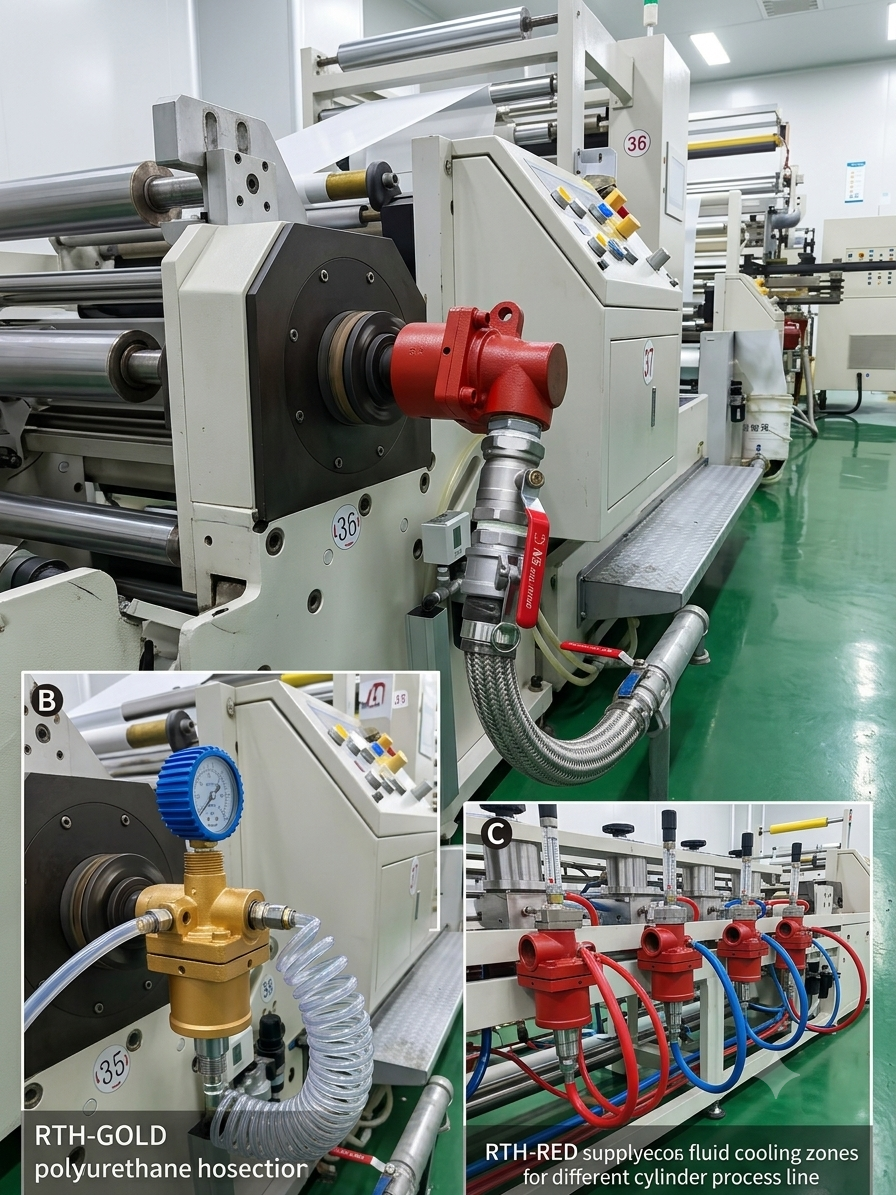

Typical Applications
Machine tool cooling systems
Roll cooling in steel and paper mills
Hydraulic and pneumatic equipment
Operating Conditions
| Media | Coolant, hot water, cold water, oil, compressed air, low-pressure steam |
|---|---|
| Max Pressure | 1.6 MPa |
| Max Temperature | 120°C |
| Speed Range | 200 – 3,000 rpm |

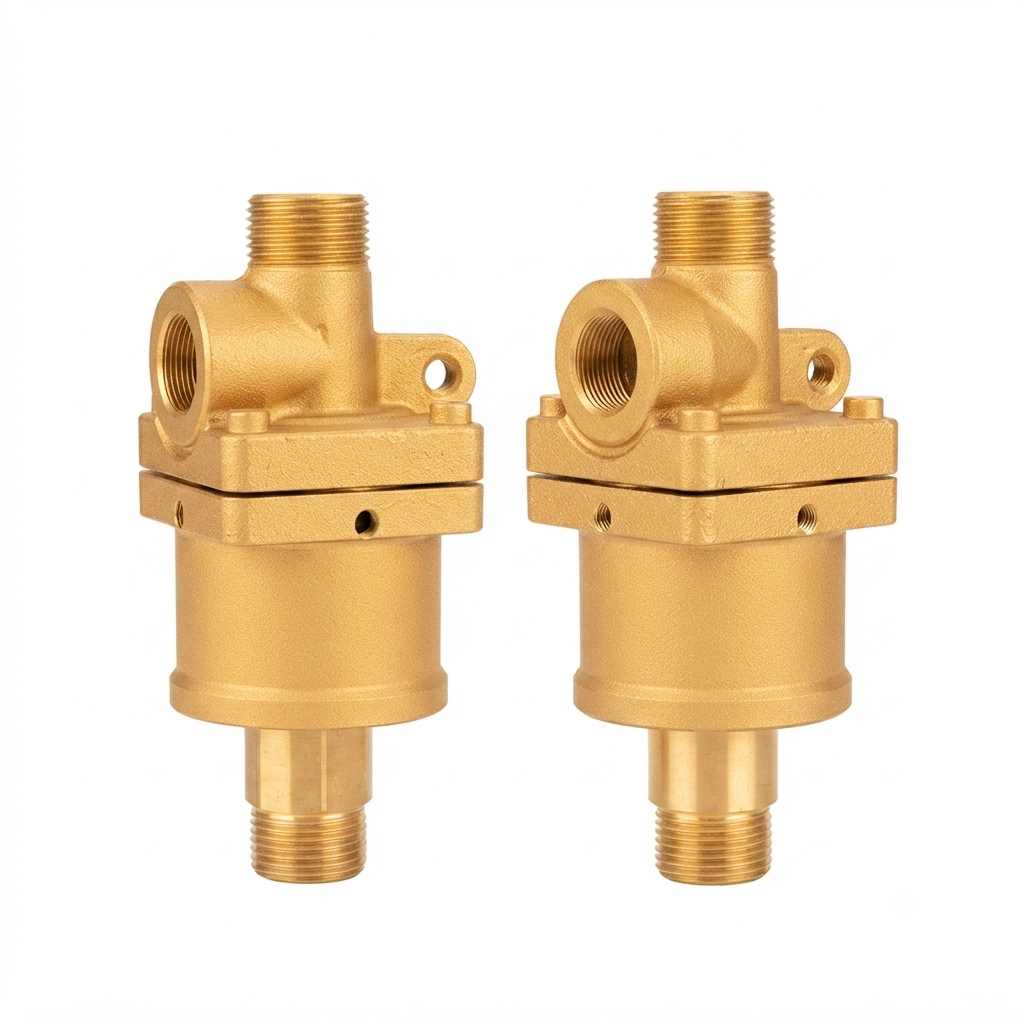

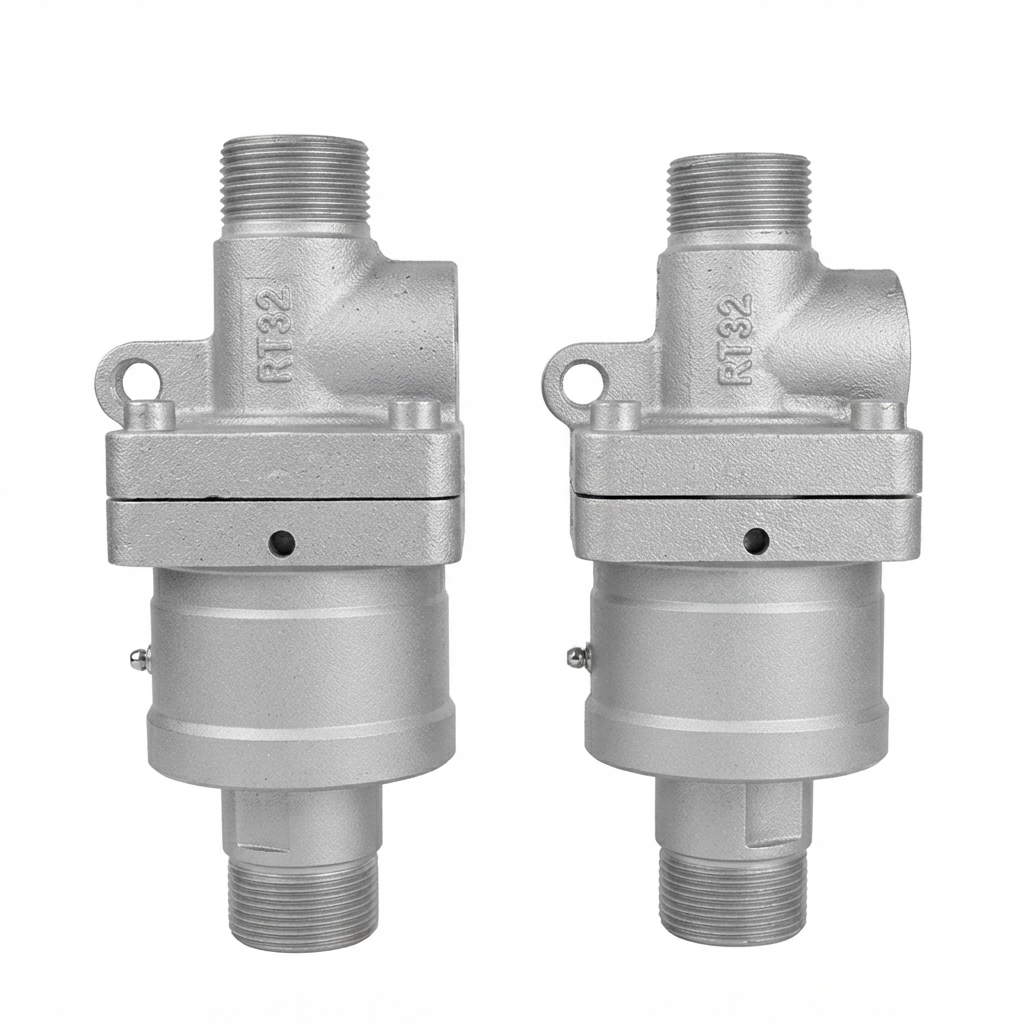

Product Gallery
Get in Touch
Send Us Your Drawing or Duty Conditions
Tell us the medium, temperature, pressure, speed and connection size. Our engineers reply with a selection or a custom proposal — usually within one working day.
