RTQ Series — Low-Speed, High-Temperature Rotary Joint
Dual-spherical design for steam and thermal oil up to 350°C
Overview
The RTQ series is a patented product developed to improve upon conventional Q-type rotary joints. It features an integrated guide ring for superior concentricity, with dual-spherical design utilizing imported antimony-impregnated graphite sealing rings. Springs are made of imported Grade 631 stainless steel for enhanced high-temperature resistance.
Key Features
- Dual-spherical sealed structure
- Imported antimony-impregnated graphite sealing rings
- Grade 631 stainless steel springs
- Heat-resistant alloy steel rotor
Typical Applications
Drying cylinders in paper and textile mills
Calenders and heat exchangers
Thermal oil heating systems
Operating Conditions
| Media | Hot water, steam, thermal oil |
|---|---|
| Max Pressure | 2.0 MPa |
| Max Temperature | 350°C |
| Speed Range | 50 – 200 rpm |

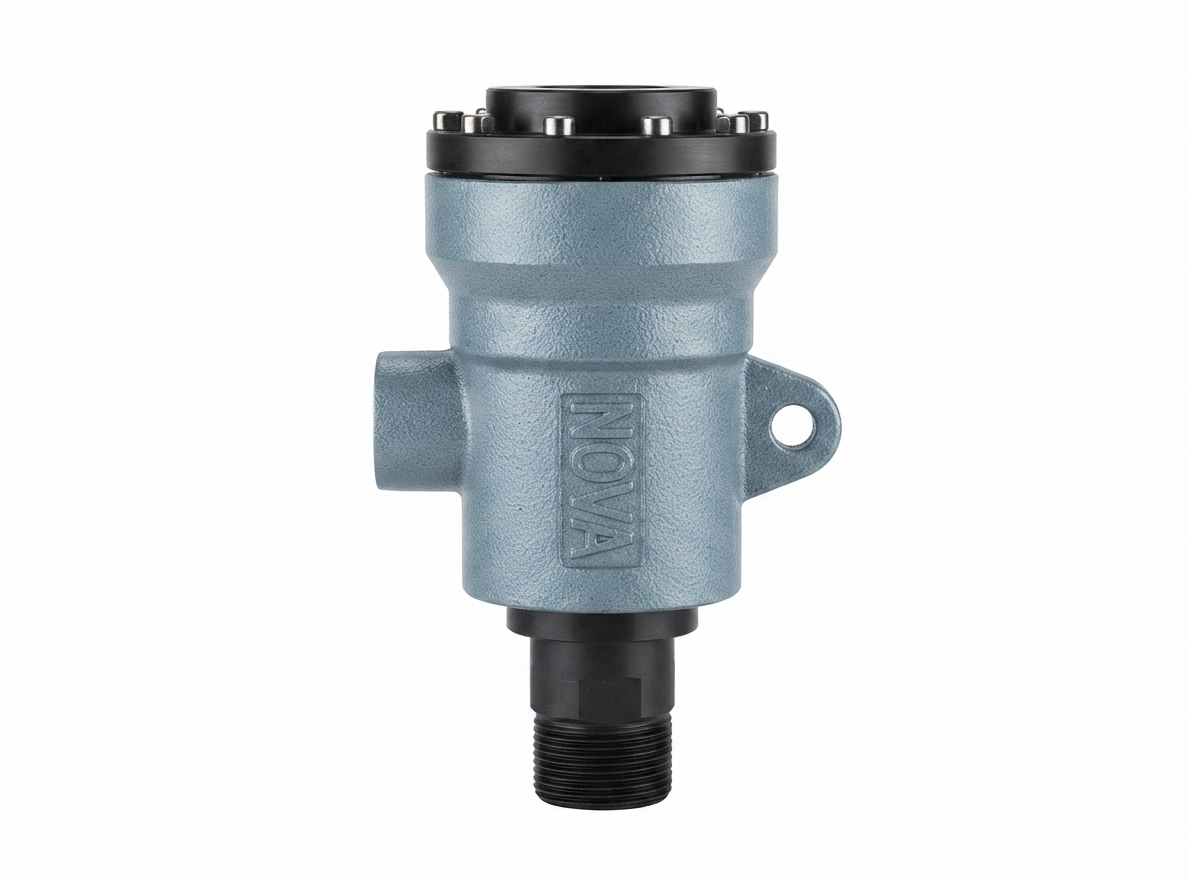

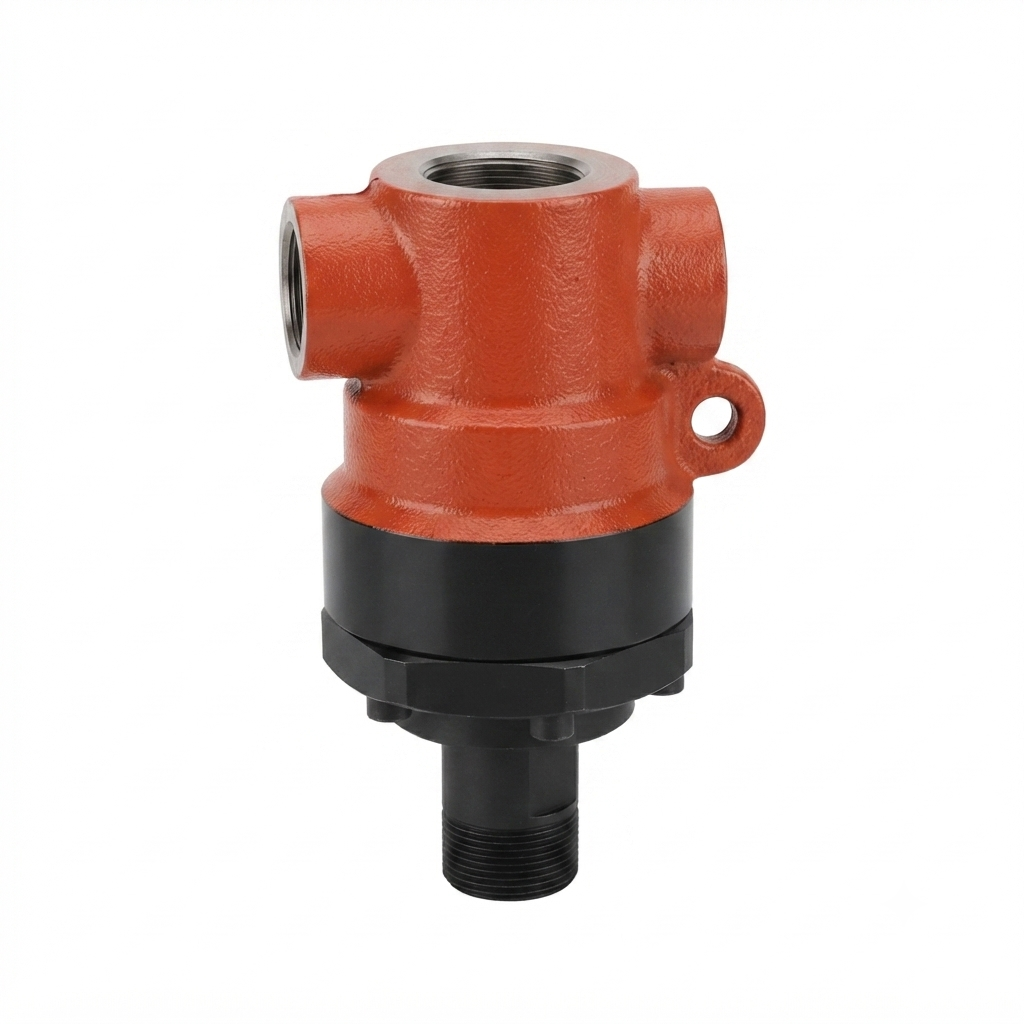

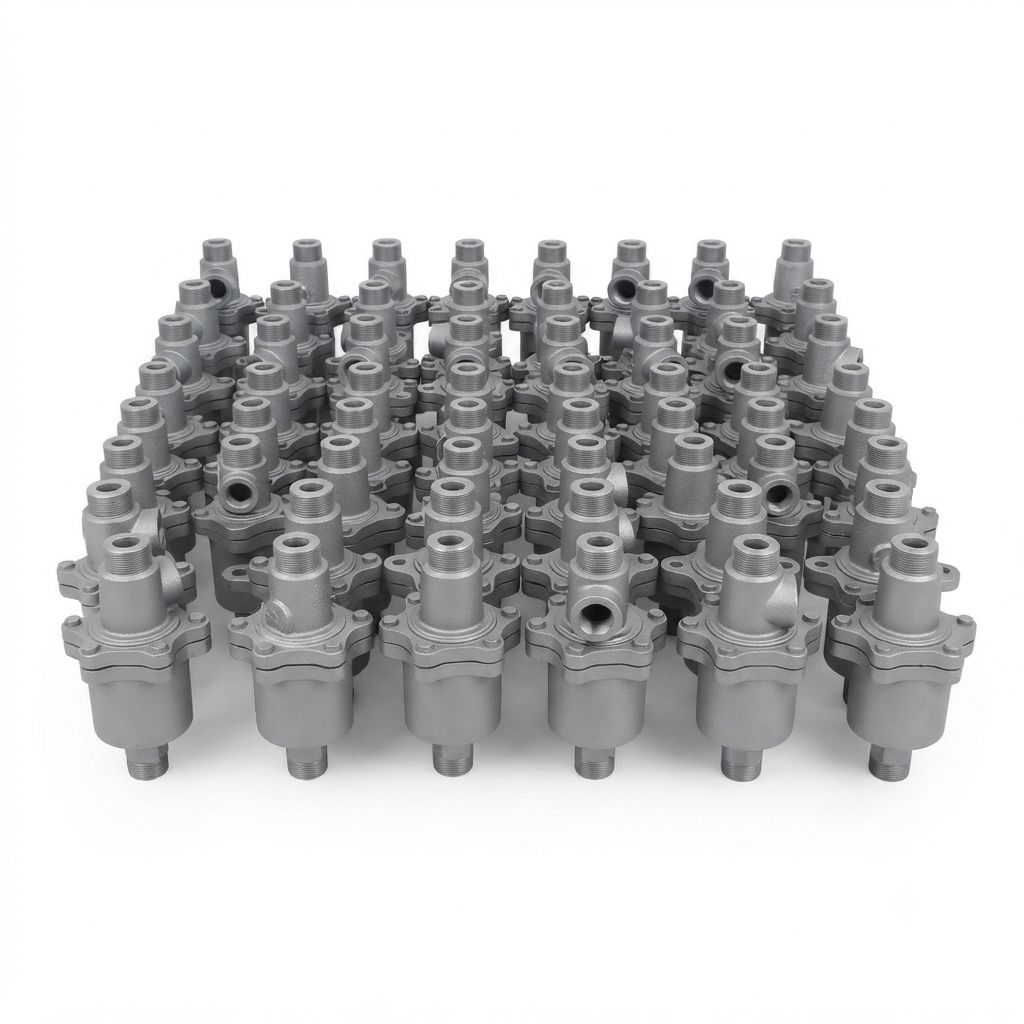

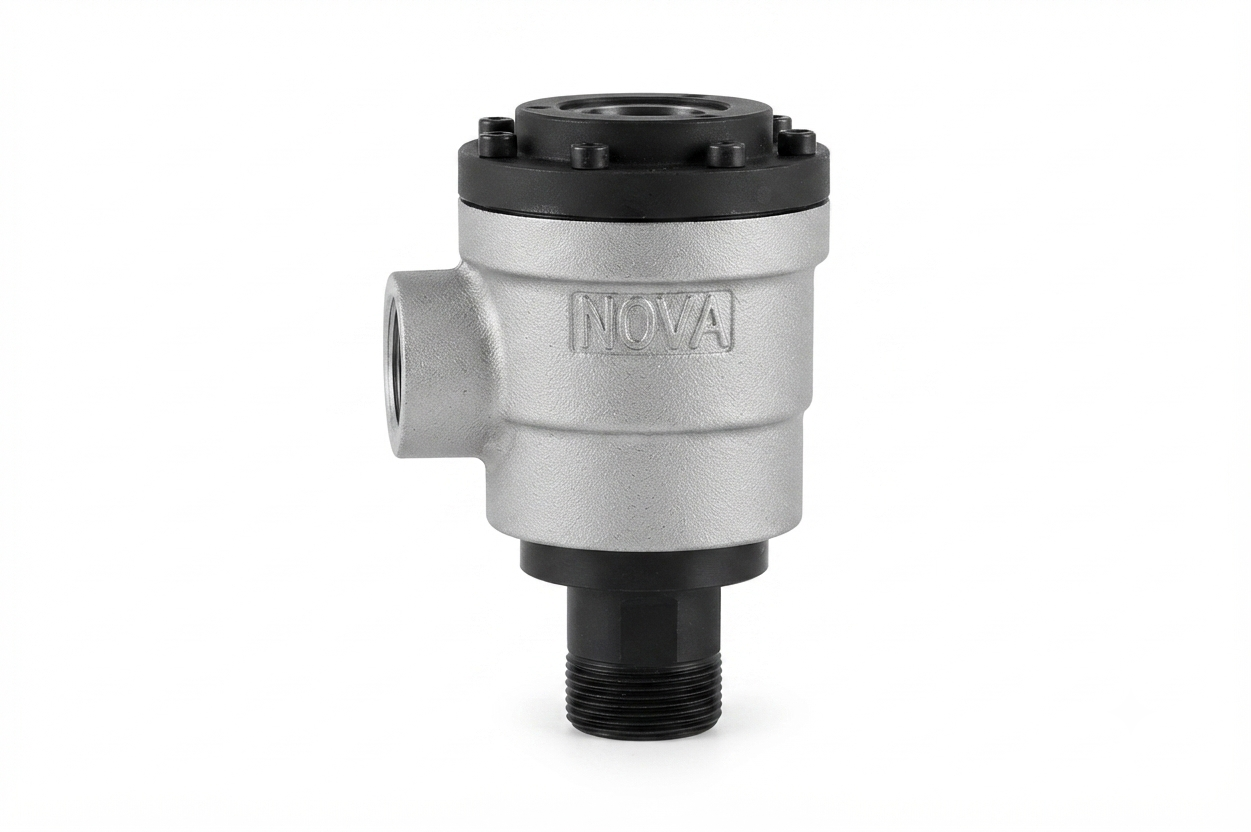

Product Gallery
